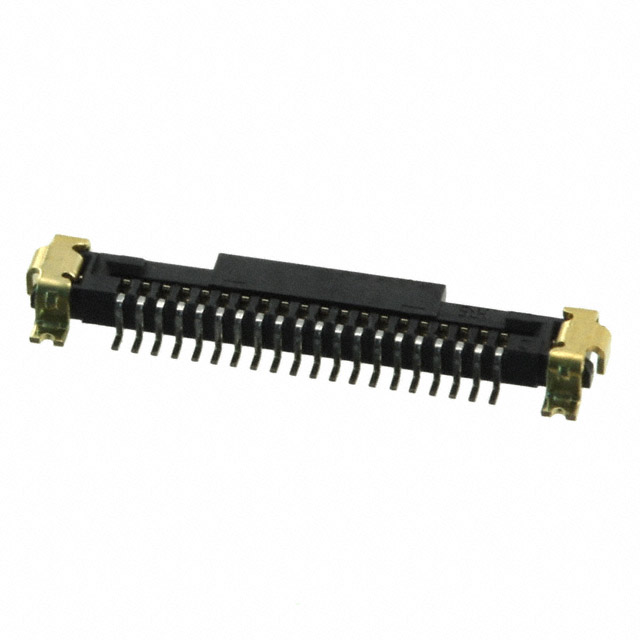

DF36-20S-0.4V(52)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF36-20S-0.4V(52) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF36-20S-0.4V(52) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF36-20S-0.4V(52) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RCPT 0.4MM 20POS AU SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | ||||
|---|---|---|---|---|---|
| $0.242 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF36-20S-0.4V(52) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT 0.4MM 20POS AU SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 98164 pcs | Data sheet | DF36-20S-0.4V(52) SpecDF36 Series DatasheetDF36-20S-0.4V(52) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 30VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | DF36 | Row Spacing - Mating | - |
| Pitch - Mating | 0.016" (0.40mm) | Packaging | Tape & Reel (TR) |
| Other Names | DF3620S04V52 H11976TR |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Friction Lock | Detailed Description | 20 Position Receptacle Connector 0.016" (0.40mm) Surface Mount Gold |
| Current Rating | Varies by Wire Gauge | Contact Type | Center Strip Contact |
| Contact Shape | - | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 3.90µin (0.099µm) |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
