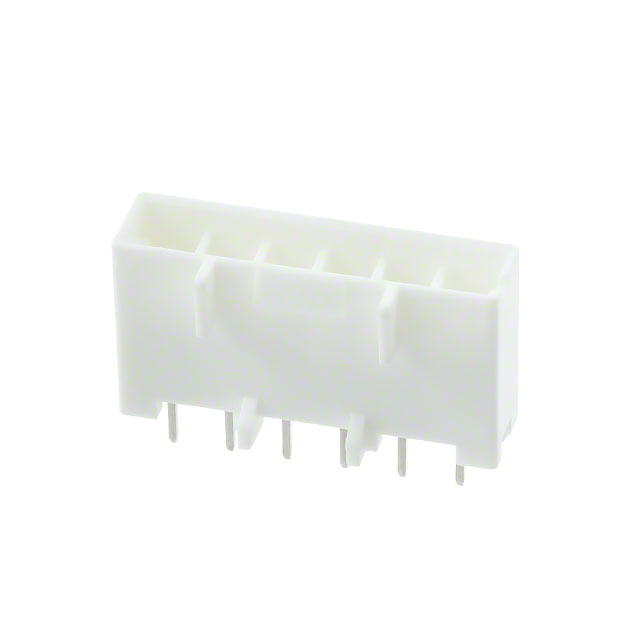

DF33C-6P-3.3DSA(24)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF33C-6P-3.3DSA(24) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF33C-6P-3.3DSA(24) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF33C-6P-3.3DSA(24) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HDR 3.3MM PCB VERT 6POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 900 pcs | 1800 pcs |
|---|---|---|---|---|---|
| $0.152 | $0.141 | $0.108 | $0.085 | $0.075 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DF33C-6P-3.3DSA(24) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 3.3MM PCB VERT 6POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 303171 pcs | Data sheet | DF33C Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | EnerBee™ DF33C |
| Row Spacing - Mating | - | Pitch - Mating | 0.130" (3.30mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | H122485 | Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 17.6mm | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.453" (11.50mm) | Insulation Color | White |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 6 position 0.130" (3.30mm) |
| Current Rating | 5A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
