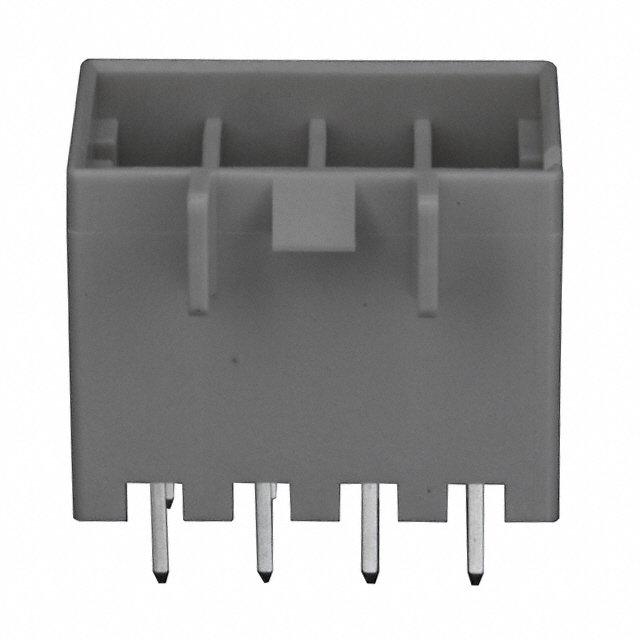

DF33-8DP-3.3DSA(24)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF33-8DP-3.3DSA(24) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF33-8DP-3.3DSA(24) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF33-8DP-3.3DSA(24) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 8POS 3.3MM DL TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 75 pcs | 150 pcs | 525 pcs | 1050 pcs |
|---|---|---|---|---|---|
| $0.271 | $0.202 | $0.194 | $0.169 | $0.139 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DF33-8DP-3.3DSA(24) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 8POS 3.3MM DL TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 157481 pcs | Data sheet | DF33 シリーズ |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | EnerBee™ DF33 |
| Row Spacing - Mating | 0.228" (5.80mm) | Pitch - Mating | 0.130" (3.30mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | *DF33-8DP-3.3DSA(24) DF338DP33DSA24 H11639 |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 17.6mm | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.453" (11.50mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 8 position 0.130" (3.30mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
