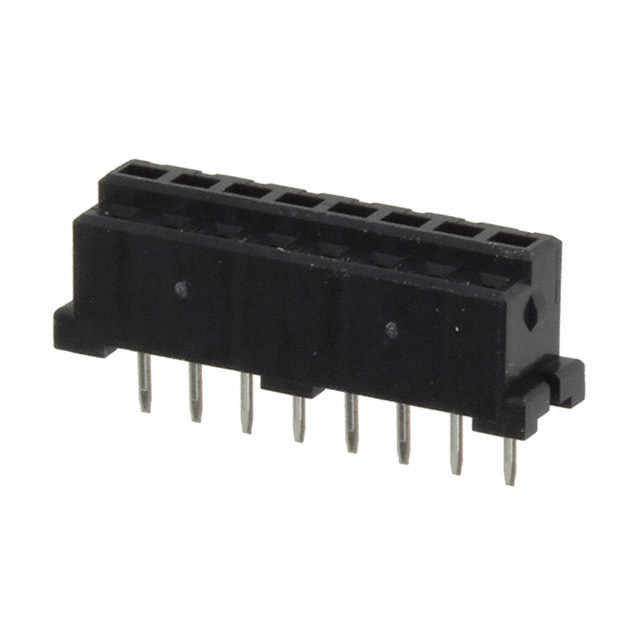

DF3-8S-2DSA(55)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF3-8S-2DSA(55) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF3-8S-2DSA(55) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF3-8S-2DSA(55) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RECEPT 8POS 2MM VERT GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 27 pcs | 108 pcs | 513 pcs | 1026 pcs |
|---|---|---|---|---|---|
| $0.559 | $0.476 | $0.435 | $0.362 | $0.311 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DF3-8S-2DSA(55) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 8POS 2MM VERT GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61005 pcs | Data sheet | DF3-11S-2DSA(55) DrawingDF3 Series DatasheetDF3-11S-2DSA(55) Spec |
| Category | Connectors, Interconnects | Voltage Rating | 30VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | DF3 | Row Spacing - Mating | - |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | *DF3-8S-2DSA(55) DF38S2DSA55 HR2050 |
Operating Temperature | -30°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 6.6mm, 7.5mm | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.232" (5.90mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | 8 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
