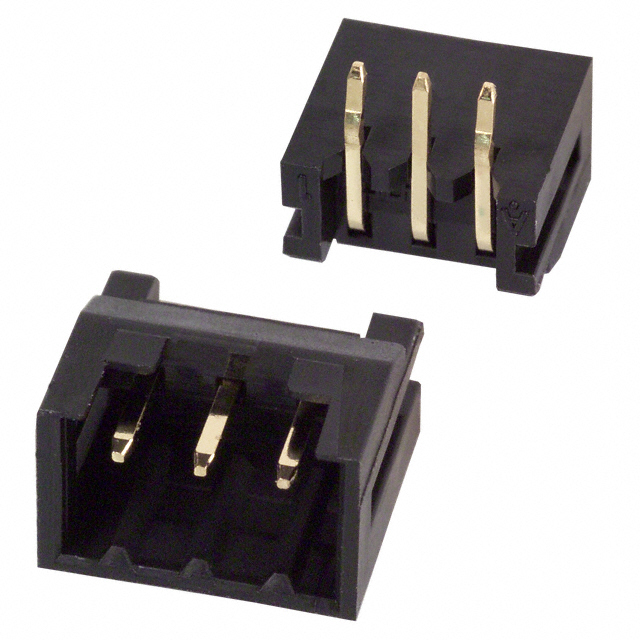

DF3-3P-2DS(01)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF3-3P-2DS(01) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF3-3P-2DS(01) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF3-3P-2DS(01) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 3POS 2MM R/A GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.185 | $0.174 | $0.133 | $0.116 | $0.096 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DF3-3P-2DS(01) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 3POS 2MM R/A GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 239578 pcs | Data sheet | DF3 Series DatasheetDF3-3P-2DS(01) SpecDF3-xP-2DS(01) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit, Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | DF3 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | *DF3-3P-2DS(01) DF3-3P-2DS(01)-ND DF33P2DS01 H3908 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.197" (5.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.079" (2.00mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.114" (2.90mm) | Contact Length - Mating | 0.122" (3.10mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
