DF22-1P-7.92DSA(05)

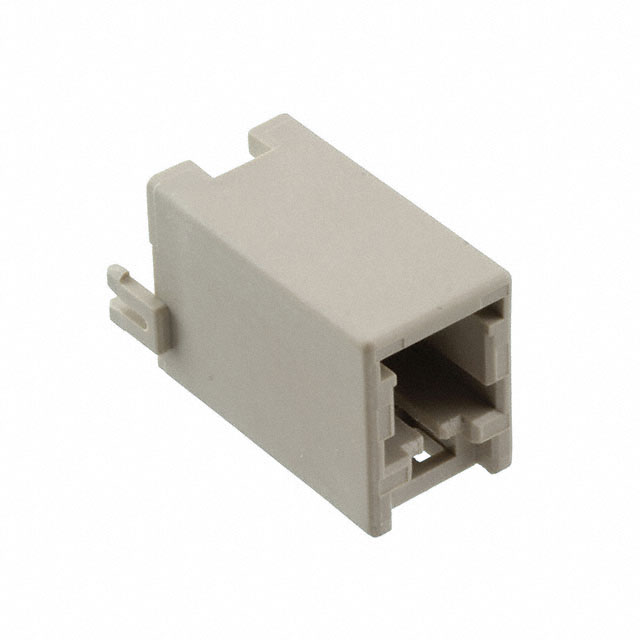

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF22-1P-7.92DSA(05) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF22-1P-7.92DSA(05) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF22-1P-7.92DSA(05) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HDR 1POS 7.92MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.236 | $0.222 | $0.17 | $0.148 | $0.122 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DF22-1P-7.92DSA(05) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 1POS 7.92MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 156407 pcs | Data sheet | DF22 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 1000V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | EnerBee™ DF22 |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 680-1013-5-05 DF22-1P-7.92DSA(05)-ND H123124 |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 25.7mm, 28.7mm | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.713" (18.10mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 1 position |
| Current Rating | 30A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.146" (3.70mm) | Contact Length - Mating | 0.354" (9.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Tin-Copper |
| Connector Type | Header | Applications | - |
