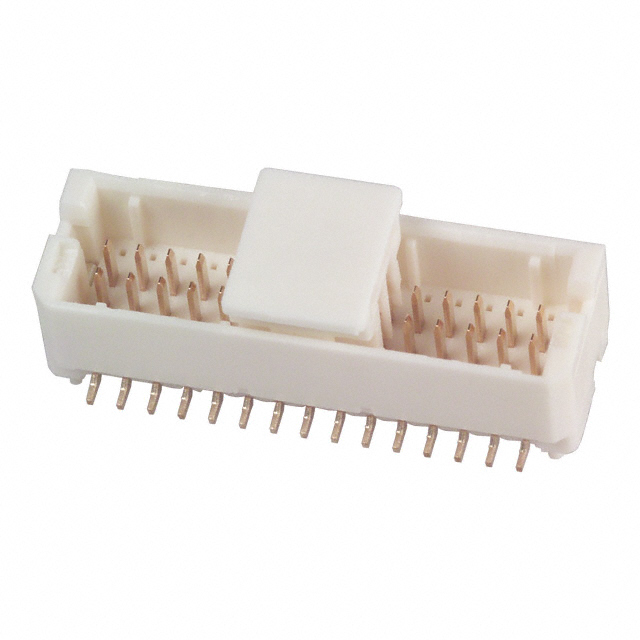

DF20G-30DP-1V(56)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF20G-30DP-1V(56) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF20G-30DP-1V(56) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF20G-30DP-1V(56) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 30POS DUAL SMD GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.004 | $0.964 | $0.804 | $0.683 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF20G-30DP-1V(56) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 30POS DUAL SMD GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 46875 pcs | Data sheet | DF20G-xxDP-1V(56) DrawingDF20G-xxDP-1V(56) SpecDF20 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DF20 |
| Row Spacing - Mating | 0.039" (1.00mm) | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | *DF20G-30DP-1V(56) H10733CT |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 5.8mm | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.181" (4.60mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide, Pick and Place, Solder Retention |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 30 position 0.039" (1.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
