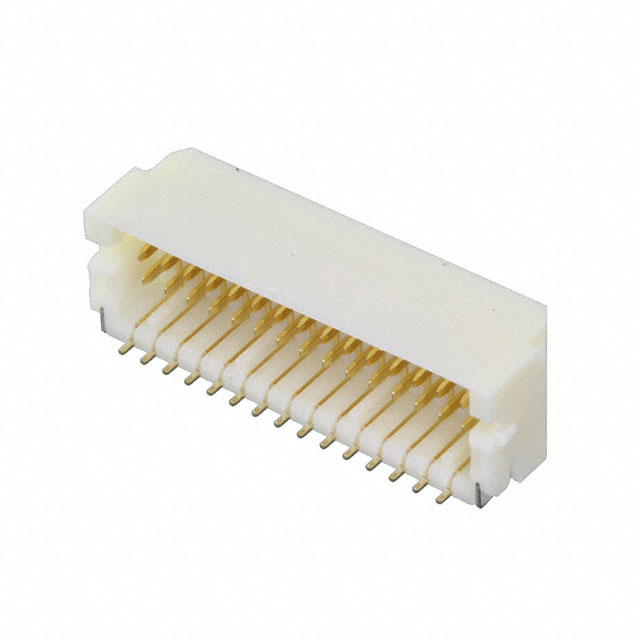

DF20F-30DP-1H(50)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF20F-30DP-1H(50) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF20F-30DP-1H(50) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF20F-30DP-1H(50) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HDR 30POS DUAL RA SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 27 pcs | 108 pcs | 513 pcs | |
|---|---|---|---|---|---|
| $0.94 | $0.802 | $0.732 | $0.61 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF20F-30DP-1H(50) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 30POS DUAL RA SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 62997 pcs | Data sheet | DF20F-xDP-1H(50) DrawingDF20F-xDP-1H(50) SpecDF20 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DF20 |
| Row Spacing - Mating | 0.039" (1.00mm) | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 686-0029-8-50 DF20F-30DP-1H(50)-ND H123120 |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.217" (5.51mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount, Right Angle 30 position 0.039" (1.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
