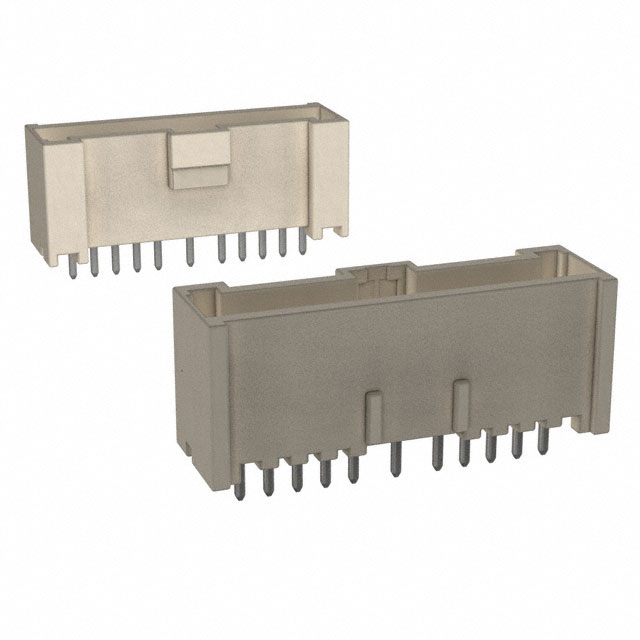

DF1EG-11P-2.5DSA(35)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF1EG-11P-2.5DSA(35) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF1EG-11P-2.5DSA(35) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF1EG-11P-2.5DSA(35) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 11POS 2.5MM STR TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.446 | $0.391 | $0.338 | $0.276 | $0.246 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DF1EG-11P-2.5DSA(35) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 11POS 2.5MM STR TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 93574 pcs | Data sheet | DF1EG-xP-2.5DSA(35) SpecDF1EG-xP-2.5DSA(35) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DF1E |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 5410932435 DF1EG-11P-2.5DSA(35)-ND H125180 |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 11 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 14.3mm, 15.8mm, 19.8mm | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.642" (16.30mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 11 position 0.098" (2.50mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | 0.177" (4.50mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
