Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > DF1BD-8P-2.5DSA(05)

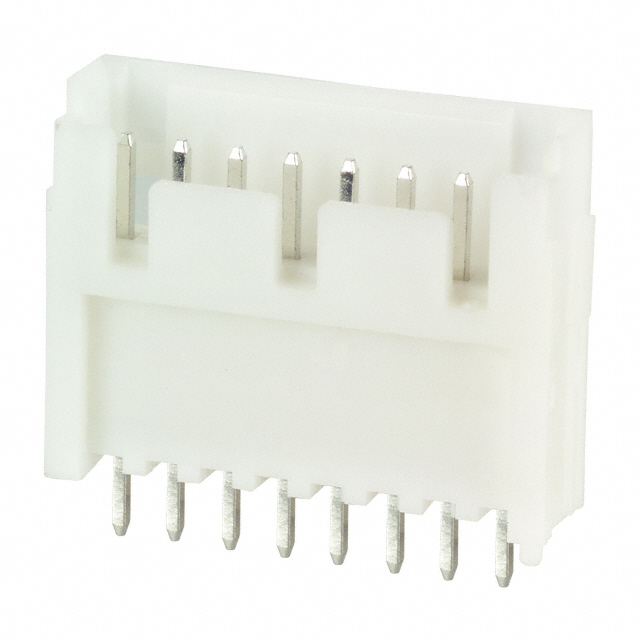

DF1BD-8P-2.5DSA(05)

DF1BD-8P-2.5DSA(05)

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF1BD-8P-2.5DSA(05) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	DF1BD-8P-2.5DSA(05)
Manufacturer	Hirose Electric Co Ltd
Description	CONN HEADER 8POS 2.5MM STR TIN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 69608 pcs
Reference Price (In US Dollars)	100 pcs
Reference Price (In US Dollars)	$0.317

Product parameter
Data sheet

Product parameter

Part Number	DF1BD-8P-2.5DSA(05)	Manufacturer	Hirose Electric Co Ltd
Description	CONN HEADER 8POS 2.5MM STR TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	69608 pcs	Data sheet	DF1BD-xP-2.5DSA(05) Drawing DF1BD-xP-2.5DSA(05) Spec DF1B Series Datasheet
Category	Connectors, Interconnects	Termination	Solder
Stacking Direction	Male Pin	Shrouding	0.098" (2.50mm)
Series	DF1B	Row Spacing - Mating	Shrouded
RoHS Status	Bulk	Other Names	*DF1BD-8P-2.5DSA(05) H11022
Number of Rows	1	Number of Positions	8
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Insulation	All	Manufacturer Standard Lead Time	8 Weeks
Manufacturer Part Number	DF1BD-8P-2.5DSA(05)	Features	-
Expanded Description	8 Positions Header Connector 0.098" (2.50mm) Through Hole Tin	Description	CONN HEADER 8POS 2.5MM STR TIN
Current - Max/Contact	-	Contact Length - Post	0.177" (4.50mm)
Contact Length - Mating	-	Contact Finish Thickness - Mating	Tin
Contact Finish - Post	-	Connector Type	Header
Actual Diameter	White
