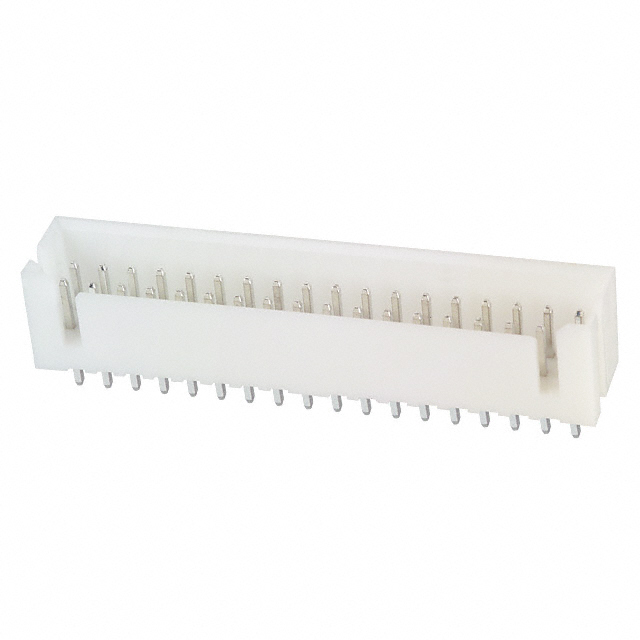

DF1B-36DP-2.5DSA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF1B-36DP-2.5DSA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF1B-36DP-2.5DSA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF1B-36DP-2.5DSA |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 36POS 2.5MM STR TIN |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF1B-36DP-2.5DSA | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 36POS 2.5MM STR TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4285 pcs | Data sheet | DF1B Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DF1B |
| Row Spacing - Mating | 0.098" (2.50mm) | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | 0.417" (10.60mm) |
| Other Names | *DF1B-36DP-2.5DSA H3575 |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 36 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 14mm | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.374" (9.50mm) |
| Insulation Color | White | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 36 position 0.098" (2.50mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.142" (3.60mm) |
| Contact Length - Mating | 0.177" (4.50mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
