DF1B-30DP-2.5DS(01)

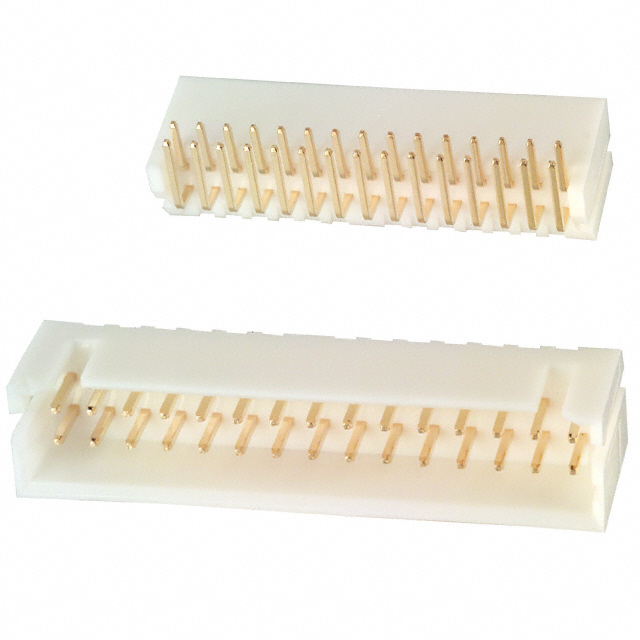

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF1B-30DP-2.5DS(01) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF1B-30DP-2.5DS(01) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF1B-30DP-2.5DS(01) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 30POS 2.5MM R/A GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.804 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF1B-30DP-2.5DS(01) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 30POS 2.5MM R/A GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 41810 pcs | Data sheet | DF1B-xDP-2.5DS(01) SpecDF1B Series DatasheetDF1B-xDP-2.5DS(01) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DF1B |
| Row Spacing - Mating | 0.098" (2.50mm) | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | *DF1B-30DP-2.5DS(01) H3662 |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.339" (8.61mm) | Insulation Color | White |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 30 position 0.098" (2.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | 0.177" (4.50mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
