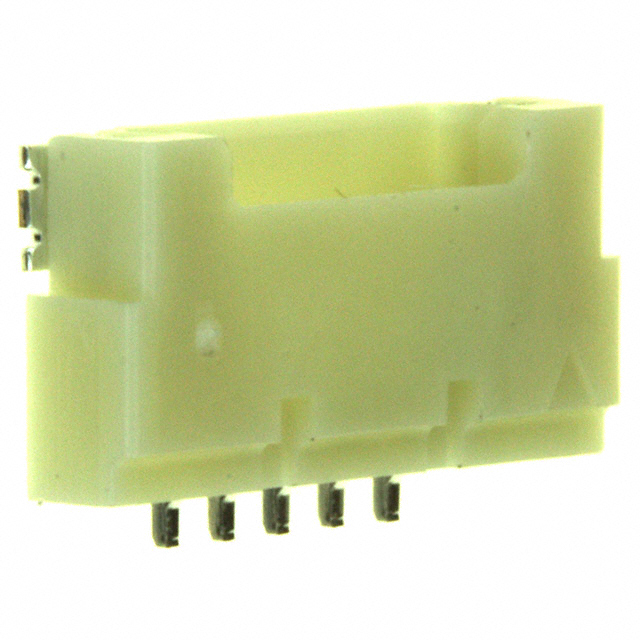

DF14A-5P-1.25H(26)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF14A-5P-1.25H(26) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF14A-5P-1.25H(26) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF14A-5P-1.25H(26) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 5POS 1.25MM R/A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.461 | $0.405 | $0.349 | $0.286 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF14A-5P-1.25H(26) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 5POS 1.25MM R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81742 pcs | Data sheet | DF14A-xP-1.25H(26) SpecDF14 Series DatasheetDF14A-xP-1.25H(26) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DF14 |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | *DF14A-5P-1.25H(26) H10344CT |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.098" (2.50mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount, Right Angle 5 position 0.049" (1.25mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.086" (2.20mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Tin-Copper |
| Connector Type | Header | Applications | - |
