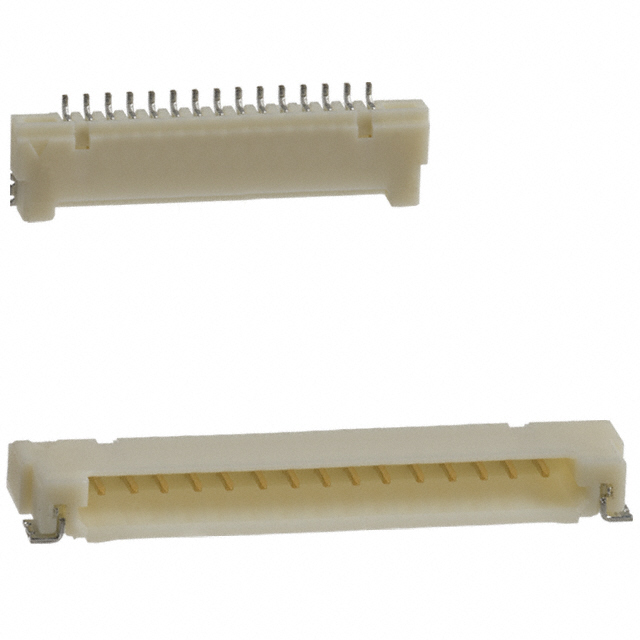

DF14A-15P-1.25H(25)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF14A-15P-1.25H(25) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF14A-15P-1.25H(25) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF14A-15P-1.25H(25) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 15POS 1.25MM R/A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.665 | $0.603 | $0.517 | $0.431 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF14A-15P-1.25H(25) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 15POS 1.25MM R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72339 pcs | Data sheet | DF14A-xP-1.25H(25) SpecDF14A-xP-1.25H(25) DrawingDF14 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DF14 |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | *DF14A-15P-1.25H(25) DF14A15P125H25 H10330 |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 15 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.098" (2.50mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount, Right Angle 15 position 0.049" (1.25mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | 0.086" (2.20mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Tin-Copper | Connector Type | Header |
| Applications | - |
