Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > DF14-8P-1.25H(55)

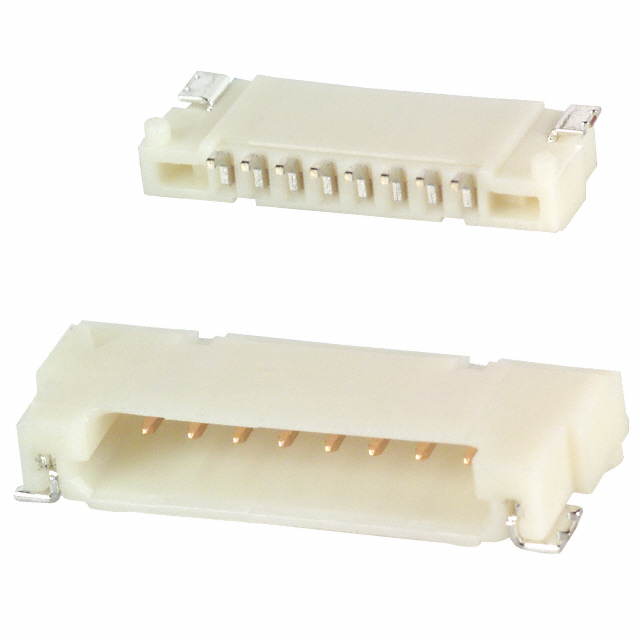

DF14-8P-1.25H(55)

DF14-8P-1.25H(55)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF14-8P-1.25H(55) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number DF14-8P-1.25H(55)
Manufacturer Hirose
Description CONN HEADER 8POS 1.25MM R/A SMD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 90701 pcs
Reference Price
(In US Dollars)		32 pcs
$0.436

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.436

Product parameter

Part Number DF14-8P-1.25H(55) Manufacturer Hirose
Description CONN HEADER 8POS 1.25MM R/A SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 90701 pcs Data sheet DF14-xP-1.25H(55) SpecDF14-xP-1.25H(55) DrawingDF14 Series Datasheet
Category Connectors, Interconnects Voltage Rating 150V
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series DF14
Row Spacing - Mating - Pitch - Mating 0.049" (1.25mm)
Packaging Tube Overall Contact Length -
Other Names *DF14-8P-1.25H(55)
H10325		 Operating Temperature -35°C ~ 85°C
Number of Rows 1 Number of Positions Loaded All
Number of Positions 8 Mounting Type Surface Mount, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insulation Material Polyamide (PA), Nylon Insulation Height 0.098" (2.50mm)
Insulation Color Beige Ingress Protection -
Features Board Guide, Solder Retention Fastening Type Push-Pull
Detailed Description Connector Header Surface Mount, Right Angle 8 position 0.049" (1.25mm) Current Rating 1A
Contact Type Male Pin Contact Shape Square
Contact Material Brass Contact Length - Post -
Contact Length - Mating 0.086" (2.20mm) Contact Finish Thickness - Post 39.4µin (1.00µm)
Contact Finish Thickness - Mating 3.90µin (0.099µm) Contact Finish - Post Tin-Copper
Contact Finish - Mating Gold Connector Type Header
Applications -
