DF13EA-40DP-1.25V(51)

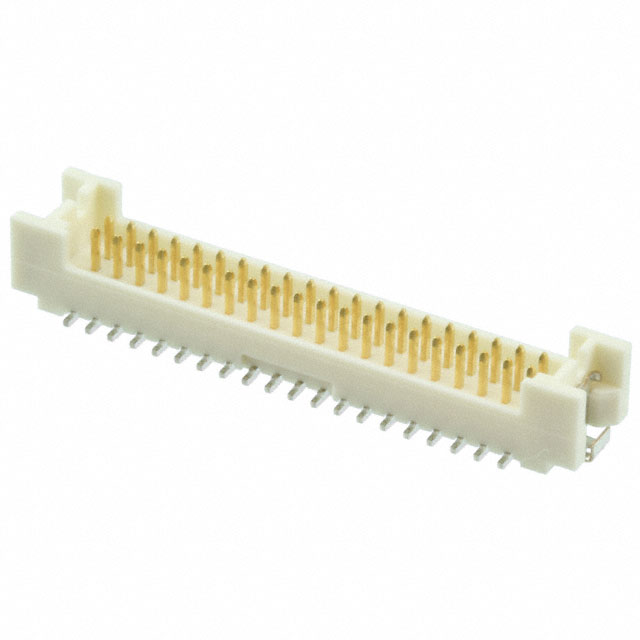

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF13EA-40DP-1.25V(51) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF13EA-40DP-1.25V(51) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF13EA-40DP-1.25V(51) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HDR 40POS 1.25MM SMD AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.30 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF13EA-40DP-1.25V(51) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 40POS 1.25MM SMD AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77786 pcs | Data sheet | DF13 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DF13 |
| Row Spacing - Mating | 0.049" (1.25mm) | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 536-0573-0-51 DF13EA-40DP-1.25V(51)-ND H125316TR |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 5.8mm |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.189" (4.80mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 40 position 0.049" (1.25mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | 0.094" (2.40mm) | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Tin-Copper |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
