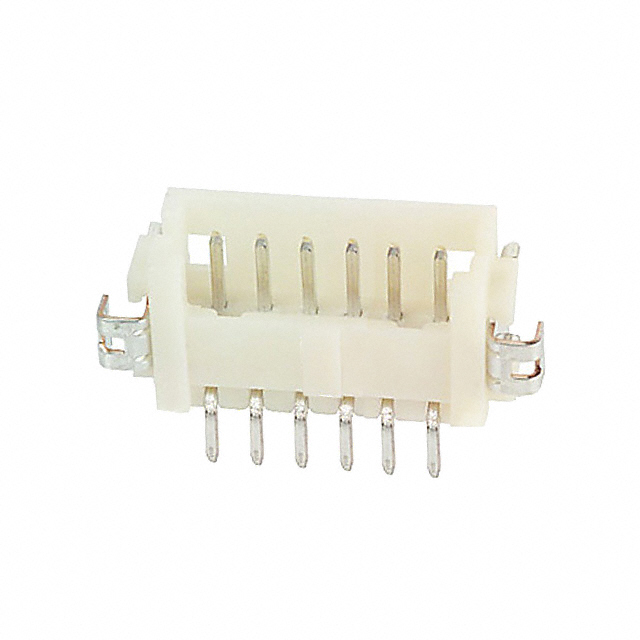

DF13A-6P-1.25H(20)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF13A-6P-1.25H(20) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF13A-6P-1.25H(20) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF13A-6P-1.25H(20) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 6POS 1.25MM R/A TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 39 pcs | 117 pcs | 507 pcs | 1014 pcs |
|---|---|---|---|---|---|
| $0.234 | $0.197 | $0.168 | $0.146 | $0.12 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DF13A-6P-1.25H(20) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 6POS 1.25MM R/A TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 157629 pcs | Data sheet | DF13A-xP-1.25H(20) SpecDF13 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DF13 |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | *DF13A-6P-1.25H(20) DF13A6P125H20 H3371 |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.142" (3.60mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Surface Mount, Right Angle 6 position 0.049" (1.25mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
