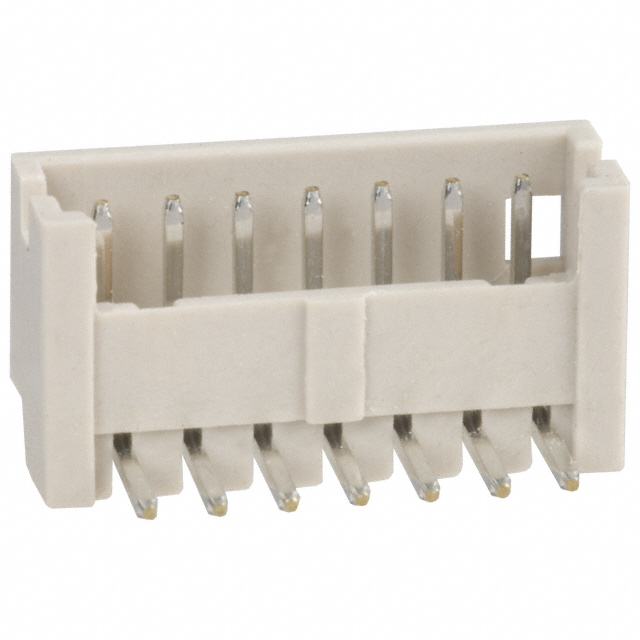

DF13-7P-1.25DS(20)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF13-7P-1.25DS(20) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF13-7P-1.25DS(20) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF13-7P-1.25DS(20) |
|---|---|
| Manufacturer | Hirose Electric Co Ltd |
| Description | CONN HEADER 7POS 1.25MM R/A TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.255 | $0.241 | $0.193 | $0.185 | $0.169 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.161 | $0.132 | $0.12 | $0.116 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF13-7P-1.25DS(20) | Manufacturer | Hirose Electric Co Ltd |
|---|---|---|---|
| Description | CONN HEADER 7POS 1.25MM R/A TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 184139 pcs | Data sheet | DF13 Series DatasheetDF13-xP-1.25DS(20) SpecDF13-xP-1.25DS(20) Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Stacking Direction | Male Pin | Shrouding | 0.049" (1.25mm) |
| Series | DF13 | Row Spacing - Mating | Shrouded |
| RoHS Status | Tube | Other Names | *DF13-7P-1.25DS(20) DF13-7P-1.25DS DF13-7P-1.25DS20 DF137P125DS20 H2204 |
| Number of Rows | 1 | Number of Positions | 7 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | All | Manufacturer Standard Lead Time | 8 Weeks |
| Manufacturer Part Number | DF13-7P-1.25DS(20) | Features | Board Guide |
| Expanded Description | 7 Positions Header Connector 0.049" (1.25mm) Through Hole, Right Angle Tin | Description | CONN HEADER 7POS 1.25MM R/A TIN |
| Current - Max/Contact | - | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Mating | Tin |
| Contact Finish - Post | - | Connector Type | Header |
| Actual Diameter | Beige |
