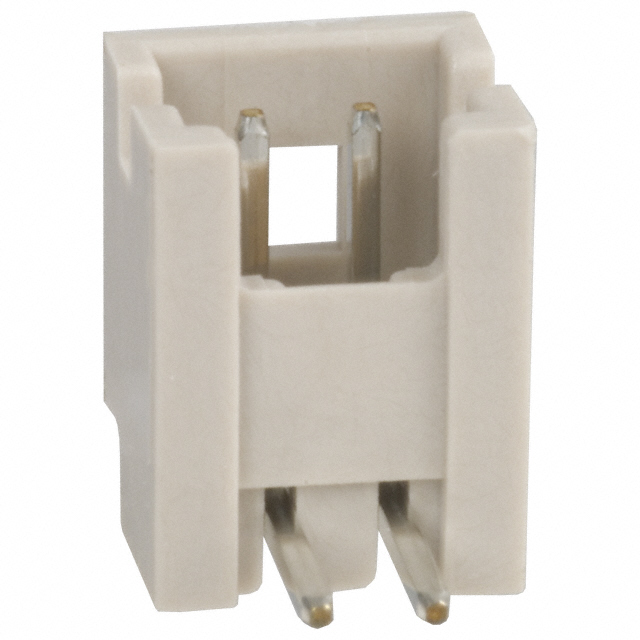

DF13-2P-1.25DS(20)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF13-2P-1.25DS(20) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF13-2P-1.25DS(20) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF13-2P-1.25DS(20) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 2POS 1.25MM R/A TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 115 pcs | ||
|---|---|---|---|---|---|
| $0.145 | $0.136 | $0.095 | |||
| 575 pcs | 1035 pcs | 5060 pcs | |||
| $0.082 | $0.068 | $0.058 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF13-2P-1.25DS(20) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 2POS 1.25MM R/A TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 399477 pcs | Data sheet | DF13-xP-1.25DS(20) SpecDF13-xP-1.25DS(20) DrawingDF13 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DF13 |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | *DF13-2P-1.25DS(20) DF13-2P-1.25DS DF13-2P-1.25DS20 DF132P125DS20 H2199 |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.142" (3.60mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole, Right Angle 2 position 0.049" (1.25mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.091" (2.30mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
