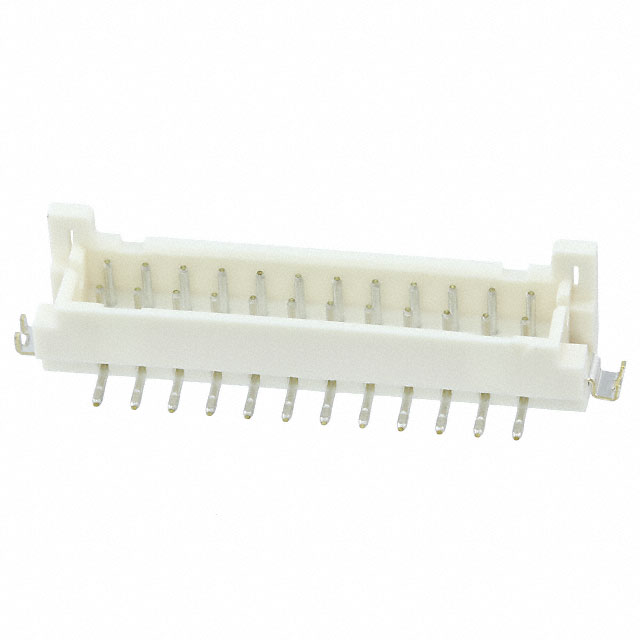

DF11Z-24DP-2V(27)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF11Z-24DP-2V(27) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF11Z-24DP-2V(27) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF11Z-24DP-2V(27) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HDR 24POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $0.437 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF11Z-24DP-2V(27) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 24POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80481 pcs | Data sheet | DF11 Series DatasheetDF11Z-xxDP-2V(27) SpecDF11Z-xxDP-2V(27) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | DF11 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 543-2027-7-27 DF11Z-24DP-2V(27)-ND H124569TR |
Operating Temperature | -30°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 8.2mm, 8.45mm, 9.55mm | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.283" (7.19mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Board Guide, Pick and Place, Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount 24 position 0.079" (2.00mm) |
| Current Rating | 2A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
