DF11CZ-8DS-2V(22)

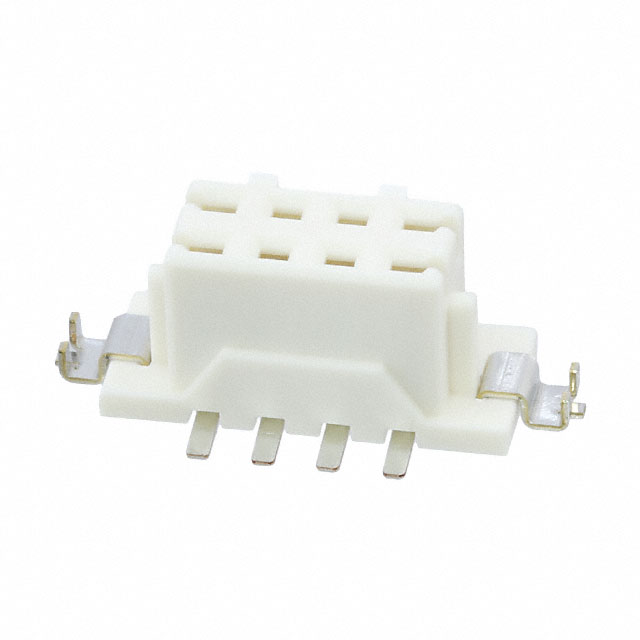

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF11CZ-8DS-2V(22) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF11CZ-8DS-2V(22) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF11CZ-8DS-2V(22) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN SOCKET 8POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.477 | $0.418 | $0.394 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.377 | $0.361 | $0.328 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF11CZ-8DS-2V(22) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN SOCKET 8POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68027 pcs | Data sheet | DF11 Series DatasheetDF11CZ-xDP-2V(27) DrawingDF11CZ-xDP-2V(27) Spec |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Board or Cable |
| Series | DF11 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Cut Tape (CT) |
| Other Names | H124564CT | Operating Temperature | -30°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 7.55mm, 8.2mm | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.234" (5.95mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Pick and Place, Solder Retention |
| Fastening Type | Friction Lock | Detailed Description | 8 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Tin |
| Current Rating | 2A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | General Purpose |
