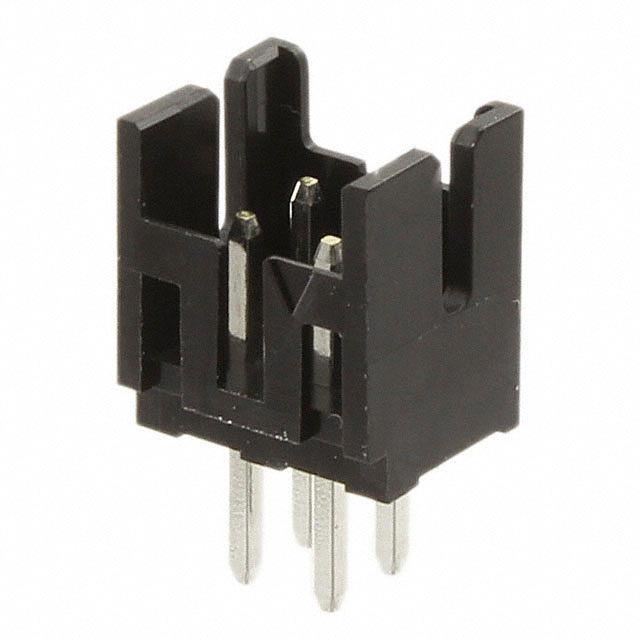

DF11-4DP-2DSA(08)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF11-4DP-2DSA(08) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF11-4DP-2DSA(08) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF11-4DP-2DSA(08) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN 4POS 2MM PCB TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.078 | $0.073 | $0.051 | $0.043 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.035 | $0.031 | $0.028 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF11-4DP-2DSA(08) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN 4POS 2MM PCB TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 853798 pcs | Data sheet | DF11 Series DatasheetDF11-xxDP-2DSA(08) DrawingDF11-xxDP-2DSA(08) Spec |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | DF11 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | 0.299" (7.60mm) |
| Other Names | DF11-4DP-2DSA(08)-ND H122036 Q6550856A |
Operating Temperature | -30°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 7.55, 7.8mm, 8.9mm | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.260" (6.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 4 position 0.079" (2.00mm) |
| Current Rating | 2A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
