DF11-26DS-2DSA(06)

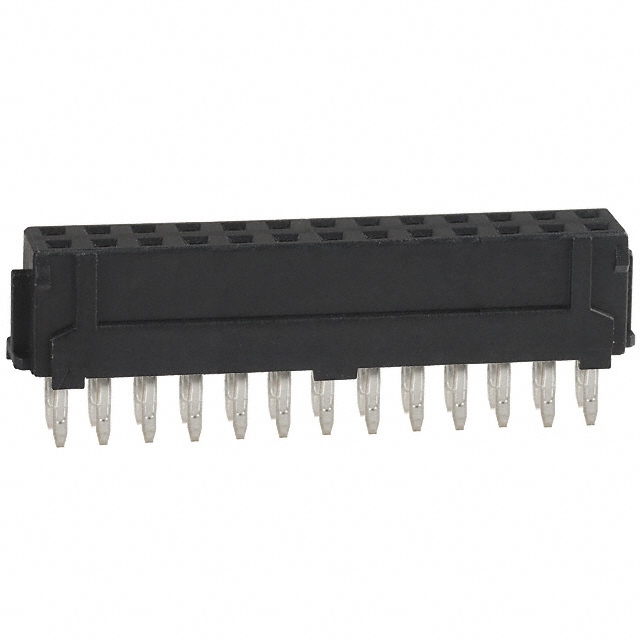

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF11-26DS-2DSA(06) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF11-26DS-2DSA(06) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF11-26DS-2DSA(06) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RECEPT 26POS 2MM PCB GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.172 | $1.125 | $0.937 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF11-26DS-2DSA(06) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 26POS 2MM PCB GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40755 pcs | Data sheet | DF11 Series DatasheetDF11-xDS-2DSA(06) DrawingDF11-xDS-2DSA(06) Spec |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Press-Fit, Solder | Style | Board to Board or Cable |
| Series | DF11 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
| Other Names | *DF11-26DS-2DSA(06) DF1126DS2DSA06 H10193 |
Operating Temperature | -30°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 7.8mm, 8.45mm | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.244" (6.20mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | 26 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating | 2A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose |
