DF11-10DP-2DS(52)

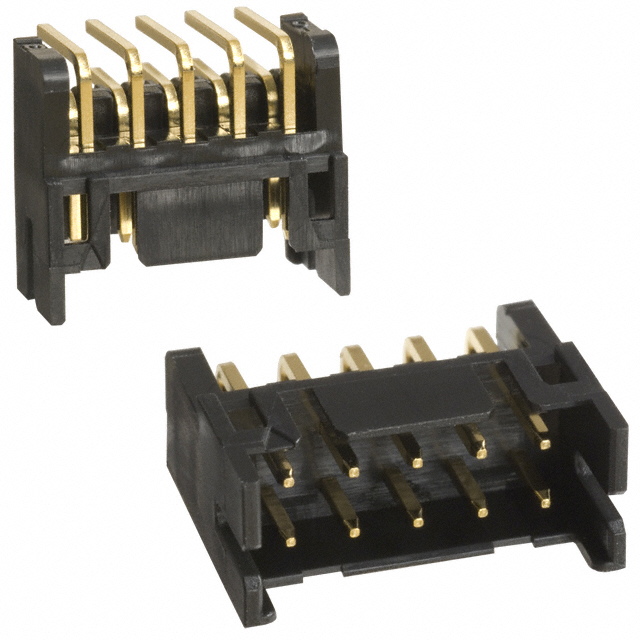

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF11-10DP-2DS(52) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF11-10DP-2DS(52) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF11-10DP-2DS(52) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 10POS 2MM R/A GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 40 pcs | 120 pcs | 520 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.509 | $0.433 | $0.395 | $0.329 | $0.282 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DF11-10DP-2DS(52) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 10POS 2MM R/A GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72180 pcs | Data sheet | DF11 Series DatasheetDF11-10DP-2DS(52) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | DF11 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | *DF11-10DP-2DS(52) DF11-10DP-2DS(52)-ND DF1110DP2DS52 H2868 |
Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.197" (5.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole, Right Angle 10 position 0.079" (2.00mm) |
| Current Rating | 2A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
