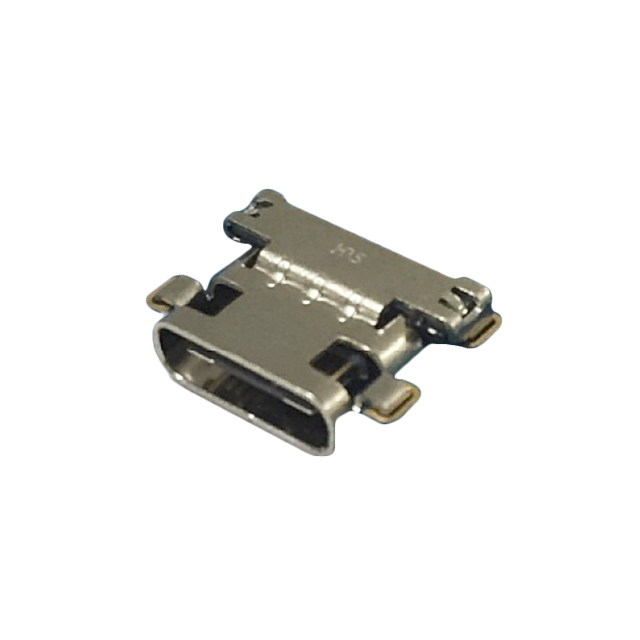

CX70M-24P1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CX70M-24P1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CX70M-24P1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CX70M-24P1 |
|---|---|
| Manufacturer | Hirose |
| Description | CONN USB 3.1 TYPE C MID MOUNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.878 | $0.799 | $0.75 | $0.717 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.684 | $0.619 | $0.57 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CX70M-24P1 | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN USB 3.1 TYPE C MID MOUNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69296 pcs | Data sheet | CX70M-24P1 DrawingCX Series Datasheet |
| Category | Connectors, Interconnects | Voltage - Rated | 20VAC |
| Termination | Solder | Specifications | USB 3.0 (USB 3.1 Gen 1, Superspeed) |
| Shielding | - | Shell/Shielding Material | Steel, Stainless |
| Series | CX70M | Packaging | Cut Tape (CT) |
| Other Names | H125292CT | Operating Temperature | -30°C ~ 85°C |
| Number of Ports | 1 | Number of Contacts | 24 |
| Mounting Type | Board Edge, Cutout; Surface Mount; Through Hole, Right Angle | Mounting Feature | Horizontal, Mid Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10000 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | Black |
| Ingress Protection | - | Gender | Receptacle |
| Features | - | Detailed Description | USB - C USB 3.0 (USB 3.1 Gen 1, Superspeed) Receptacle Connector 24 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle |
| Current Rating | - | Contact Finish | Gold |
| Connector Type | USB - C |
