A3C-26P-2DSA

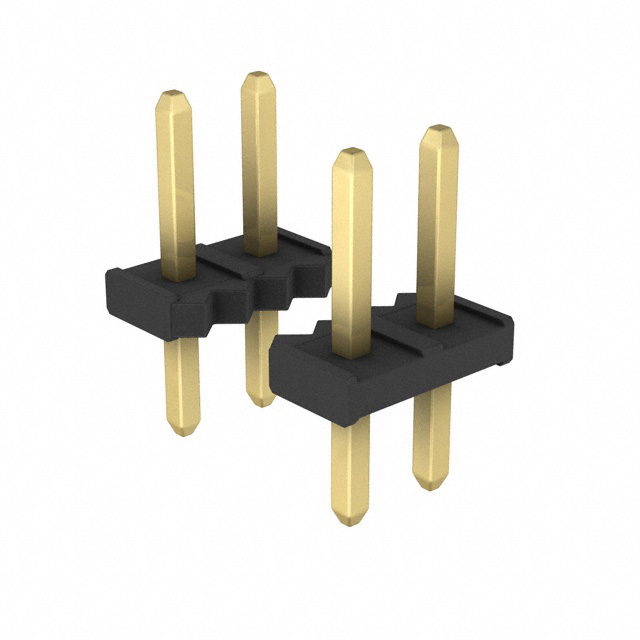

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A3C-26P-2DSA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A3C-26P-2DSA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | A3C-26P-2DSA |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 26POS 2MM GOLD DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | A3C-26P-2DSA | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 26POS 2MM GOLD DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4304 pcs | Data sheet | A3,A4 Series |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | A3 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | 0.276" (7.00mm) |
| Other Names | *A3C-26P-2DSA 621-0613-0-00 H1819 |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 5.1mm, 7.9mm | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.035" (0.90mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 26 position 0.079" (2.00mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.102" (2.60mm) |
| Contact Length - Mating | 0.138" (3.50mm) | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
