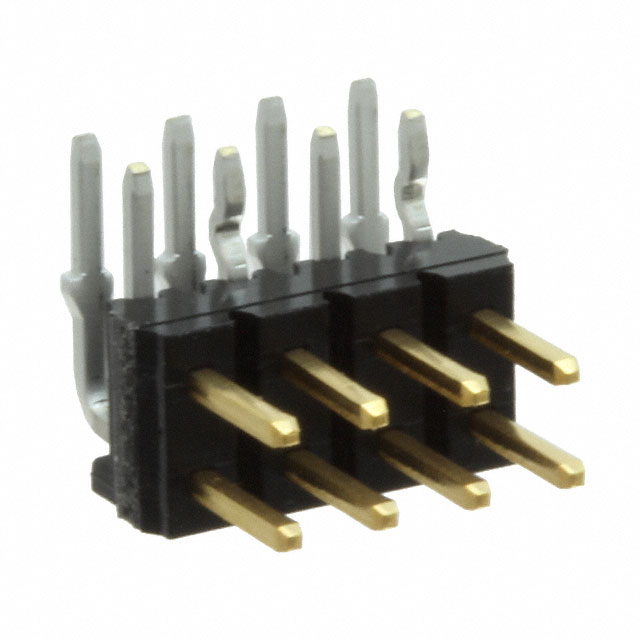

A3B-8PA-2DS(51)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A3B-8PA-2DS(51) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A3B-8PA-2DS(51) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | A3B-8PA-2DS(51) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 8POS RA 2MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.158 | $0.15 | $0.129 | $0.11 | $0.105 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.095 | $0.09 | $0.075 | $0.069 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | A3B-8PA-2DS(51) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 8POS RA 2MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 349970 pcs | Data sheet | A3, A4 Series DatasheetA3B-xPA-2DS(51) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200VAC |
| Termination | Kinked Pin, Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | A3 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 621-0353-0-51 H125673 |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.157" (4.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 8 position 0.079" (2.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.102" (2.60mm) | Contact Length - Mating | 0.138" (3.50mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
