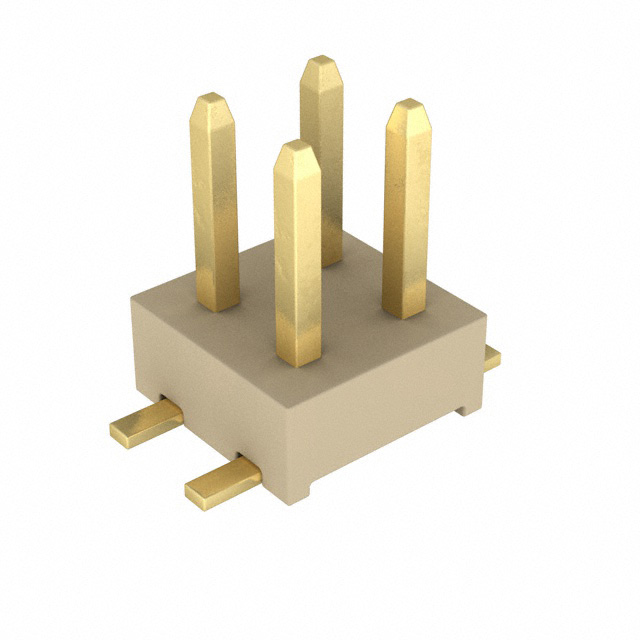

A3-4PA-2SV(71)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A3-4PA-2SV(71) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A3-4PA-2SV(71) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | A3-4PA-2SV(71) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 4POS 2MM GOLD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 120 pcs | 600 pcs | 1080 pcs |
|---|---|---|---|---|---|
| $0.349 | $0.305 | $0.263 | $0.216 | $0.192 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | A3-4PA-2SV(71) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 4POS 2MM GOLD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 98942 pcs | Data sheet | A3, A4 Series DatasheetA3-xPA-2SV(71) SpecA3-xPA-2SV(71) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | A3 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | *A3-4PA-2SV(71) A34PA2SV71 H10934 |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 6mm, 8.8mm | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS) |
| Insulation Height | 0.071" (1.80mm) | Insulation Color | Brown |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 4 position 0.079" (2.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.138" (3.50mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
