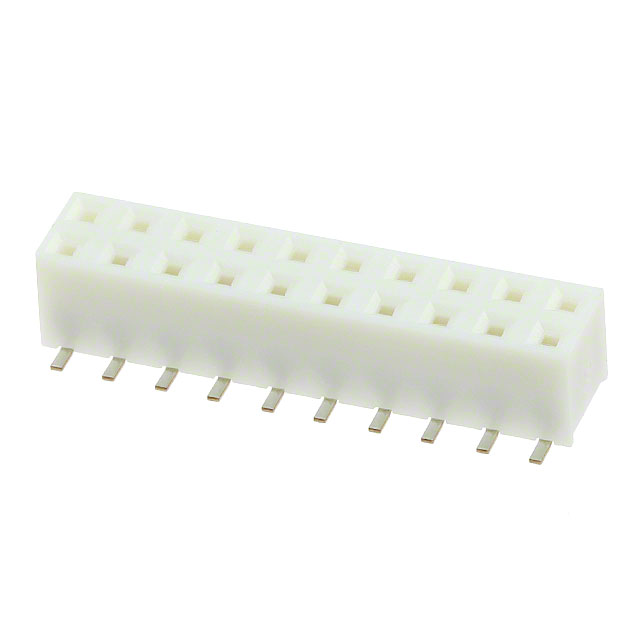

A3-20DA-2SV(71)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A3-20DA-2SV(71) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A3-20DA-2SV(71) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | A3-20DA-2SV(71) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RECEPT 20POS 2MM GOLD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 24 pcs | 120 pcs | 504 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $0.60 | $0.544 | $0.467 | $0.389 | $0.333 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | A3-20DA-2SV(71) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 20POS 2MM GOLD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66801 pcs | Data sheet | A3, A4 Series DatasheetA3-xDA-2SV(71) DrawingA3-xDA-2SV(71) Spec |
| Category | Connectors, Interconnects | Voltage Rating | 200VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | A3 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | *A3-20DA-2SV(71) A320DA2SV71 H10967 |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 5.1mm, 6mm | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS) |
| Insulation Height | 0.165" (4.20mm) | Insulation Color | Brown |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 20 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Telecommunications |
