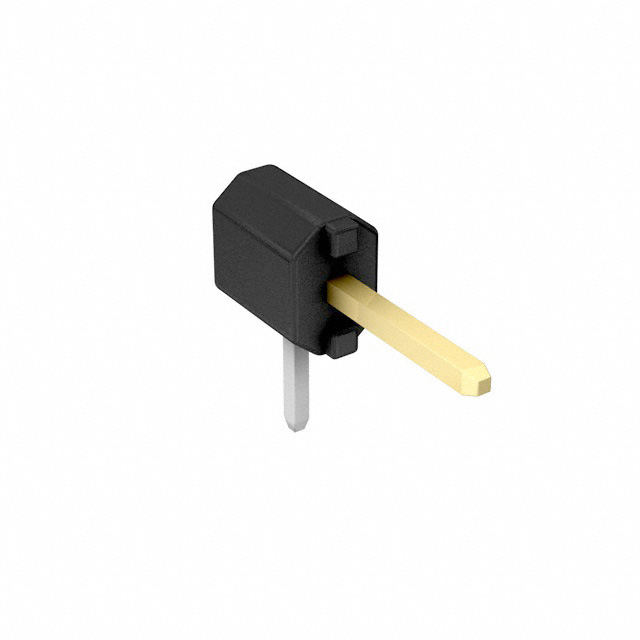

A2-1PA-2.54DS(71)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A2-1PA-2.54DS(71) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A2-1PA-2.54DS(71) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | A2-1PA-2.54DS(71) |
|---|---|
| Manufacturer | Hirose |
| Description | HDR RA 1POS 2.54MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.228 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | A2-1PA-2.54DS(71) | Manufacturer | Hirose |
|---|---|---|---|
| Description | HDR RA 1POS 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 100801 pcs | Data sheet | A2-xPA-2.54DS(71) SpecA1, A2 Series DatasheetA2-xPA-2.54DS(71) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | A2 |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 620-0001-7-71 | Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 1 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.157" (4.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 1 position |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | 0.236" (6.00mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
