3260-10S3(55)

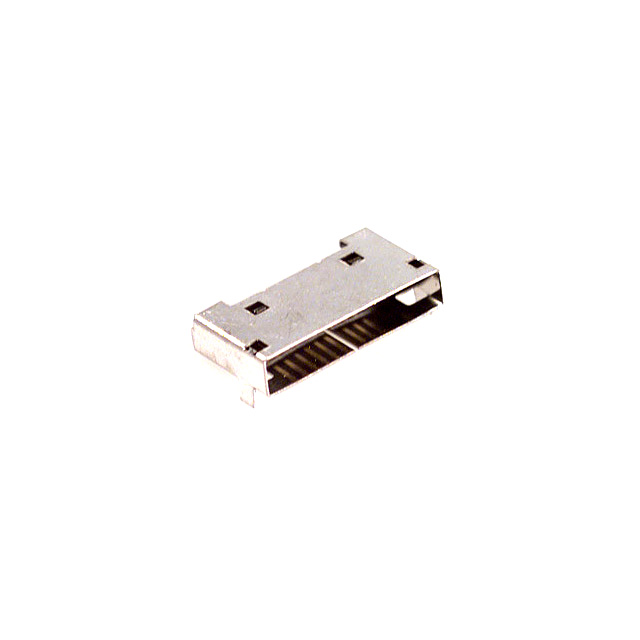

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3260-10S3(55) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3260-10S3(55) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3260-10S3(55) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RECEPTACLE 10 POS SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $1.058 | $1.014 | $0.93 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.887 | $0.845 | $0.739 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3260-10S3(55) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPTACLE 10 POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50858 pcs | Data sheet | 3200 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 125VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | 3200 | Row Spacing - Mating | - |
| Pitch - Mating | 0.031" (0.80mm) | Packaging | Tray |
| Other Names | *3260-10S3(55) 326010S355 H11348 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS) |
| Insulation Height | 0.114" (2.90mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Shielded |
| Fastening Type | Latch Holder | Detailed Description | 10 Position Receptacle Connector 0.031" (0.80mm) Surface Mount, Right Angle Gold |
| Current Rating | 500mA | Contact Type | Center Strip Contact |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 1.25µin (0.032µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose |
