W2222-00

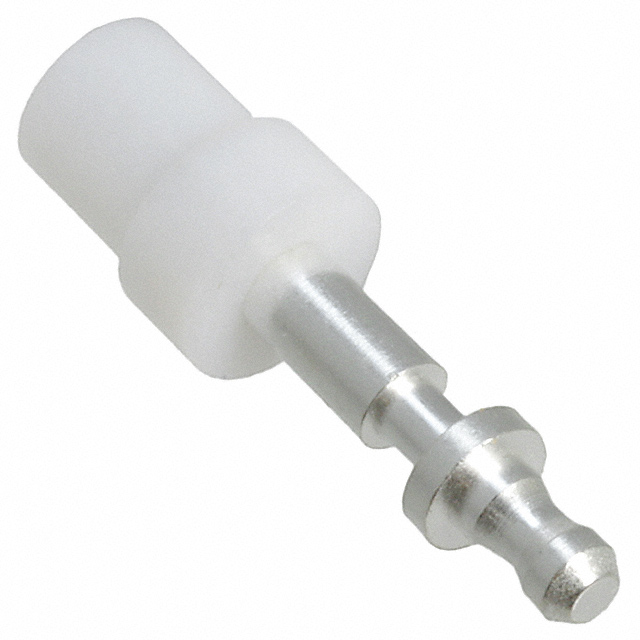

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy W2222-00 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy W2222-00 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | W2222-00 |
|---|---|
| Manufacturer | Harwin |
| Description | TERM TURRET PIN L=6.5MM SILVER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.513 | $0.45 | $0.423 | $0.406 | $0.388 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.353 | $0.318 | $0.282 | $0.256 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | W2222-00 | Manufacturer | Harwin |
|---|---|---|---|
| Description | TERM TURRET PIN L=6.5MM SILVER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75446 pcs | Data sheet | W2222-00 Drawing |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Terminal Type | Double End, Pin | Staking Side OD | - |
| Staking Side ID | - | Series | - |
| Other Names | 952-2153 W222200 |
Number of Turrets | Single |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.156" (3.96mm) |
| Material - Insulation | Polytetrafluoroethylene (PTFE) | Length - Overall | 0.560" (14.22mm) |
| Length - Below Flange | 0.303" (7.70mm) | Length - Above Board | 0.256" (6.50mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | White |
| Insulation | Insulated | Flange Diameter | 0.187" (4.75mm) |
| Diameter - Turret Head | - | Detailed Description | Terminal Turret Connector Double End, Pin 0.256" (6.50mm) Silver |
| Contact Material | Brass | Contact Finish Thickness | 137.8µin (3.50µm) |
| Contact Finish | Silver | Board Thickness | 0.028" ~ 0.063" (0.72mm ~ 1.60mm) |
