Home > Products > Connectors, Interconnects > Terminals - PC Pin Receptacles, Socket Connectors > S9101-46R

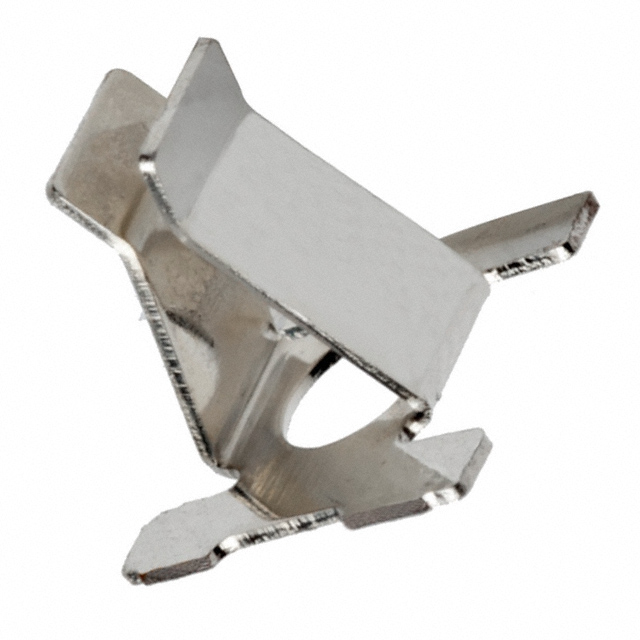

S9101-46R

S9101-46R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S9101-46R with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number S9101-46R
Manufacturer Harwin
Description CONN PIN RCPT .043-.071 SMD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 819839 pcs
Reference Price
(In US Dollars)		800 pcs1600 pcs2400 pcs5600 pcs
$0.043$0.039$0.038$0.036
8000 pcs20000 pcs40000 pcs80000 pcs
$0.033$0.032$0.031$0.03

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.043

Product parameter

Part Number S9101-46R Manufacturer Harwin
Description CONN PIN RCPT .043-.071 SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 819839 pcs Data sheet S9101-46R DrawingPC Sockets Catalog
Category Connectors, Interconnects Termination Surface Mount
Tail Type Clip Tail Diameter -
Socket Depth 0.138" (3.51mm) Series EZ-Board
Pin Hole Diameter 0.079" (2.00mm) Packaging Tape & Reel (TR)
Other Names 952-1736-2
S910146R		 Operating Temperature -40°C ~ 105°C
Mounting Hole Diameter 0.158" (4.01mm) Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 7 Weeks Length - Overall 0.177" (4.50mm)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insertion Force 2.80N ~ 4.50N
Flange Diameter - Features -
Detailed Description Pin Receptacle Connector 0.043" ~ 0.071" (1.10mm ~ 1.80mm) Clip Surface Mount Contact Material Phosphor Bronze
Contact Finish Thickness 157.5µin (4.00µm) Contact Finish Tin
Board Thickness - Accepts Square Pin Size 0.043" ~ 0.055" (1.10mm ~ 1.40mm)
Accepts Pin Diameter 0.043" ~ 0.071" (1.10mm ~ 1.80mm)
