Home > Products > Battery Products > Battery Holders, Clips, Contacts > S8201-46R

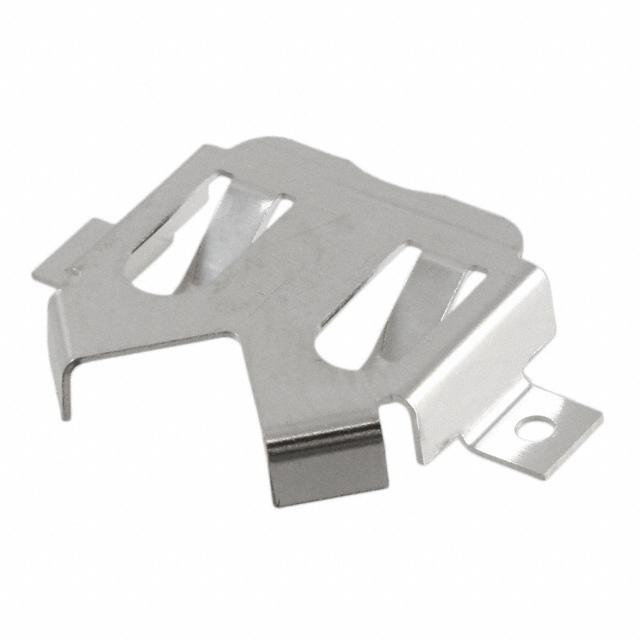

S8201-46R

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S8201-46R with confidence from Components-World.HK, 1 Year Warranty

Dowload S8201-46R Details in PDF

Request a Quote

Part Number	S8201-46R
Manufacturer	Harwin
Description	HOLDER BATT COIN 12.5X2.5MM SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 255363 pcs
Reference Price (In US Dollars)	1000 pcs	3000 pcs	5000 pcs
Reference Price (In US Dollars)	$0.101	$0.094	$0.092

Product parameter
Data sheet

Product parameter

Part Number	S8201-46R	Manufacturer	Harwin
Description	HOLDER BATT COIN 12.5X2.5MM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	255363 pcs	Data sheet	S8201-xxR Drawing
Category	Battery Products	Termination Style	SMD (SMT) Tab
Style	Retainer	Series	S8201R
Other Names	952-1662-2 S820146R	Operating Temperature	-40°C ~ 105°C
Number of Cells	1	Mounting Type	PCB, Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	7 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.126" (3.20mm)
Battery Type, Function	Coin Cell, Retainer	Battery Series	1225
Battery Cell Size	Coin, 12.5mm
