S509-46

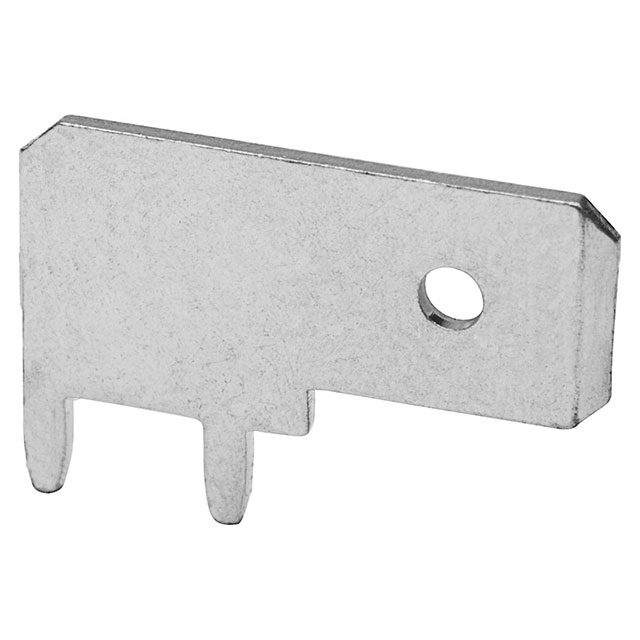

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S509-46 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy S509-46 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | S509-46 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN QC TAB R/A 6.3MM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | S509-46 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN QC TAB R/A 6.3MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5613 pcs | Data sheet | S509-46 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Termination | Solder | Terminal Type | Angled - 90° |
| Tab Width | 0.248" (6.30mm) | Tab Thickness | 0.031" (0.79mm) |
| Tab Length | 0.317" (8.05mm) | Series | - |
| Packaging | Bulk | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Length - Overall | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Diameter | - |
| Insulation | Non-Insulated | Gender | Male |
| Features | - | Detailed Description | 0.248" (6.30mm) Quick Connect Male Solder Connector Non-Insulated |
| Contact Material | Brass | Contact Finish | Tin |
| Color | - |
