S08-46

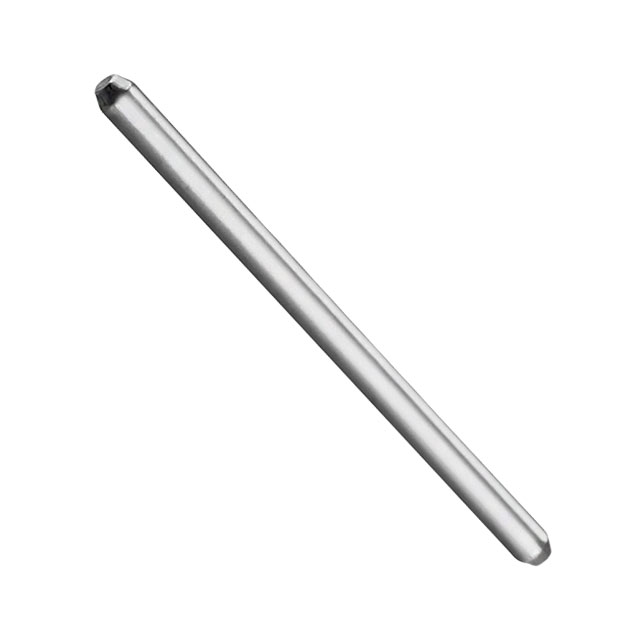

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S08-46 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy S08-46 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | S08-46 |
|---|---|
| Manufacturer | Harwin |
| Description | BRIDGE PIN 0.7MM X 15MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.088 | $0.081 | $0.069 | $0.06 | $0.056 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.05 | $0.047 | $0.039 | $0.036 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | S08-46 | Manufacturer | Harwin |
|---|---|---|---|
| Description | BRIDGE PIN 0.7MM X 15MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 623338 pcs | Data sheet | PCB Hardware CatalogS0(7,8)-46 DrawingClip & Bar Conn System Brochure |
| Category | Connectors, Interconnects | Termination | Solder |
| Terminal Type | Single Post | Terminal Style | Smooth |
| Series | EZ-Board | Pin Size - Below Flange | 0.028" (0.70mm) |
| Pin Size - Above Flange | 0.028" (0.70mm) | Packaging | Bulk |
| Other Names | 952-2672 | Mounting Type | - |
| Mounting Hole Diameter | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 7 Weeks |
| Length - Overall | 0.591" (15.00mm) | Length - Below Flange | - |
| Length - Above Flange | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | - | Detailed Description | Single Post Terminal Connector Tin 0.028" (0.70mm) |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | - |
