Home > Products > Connectors, Interconnects > Terminals - PC Pin, Single Post Connectors > S07-46

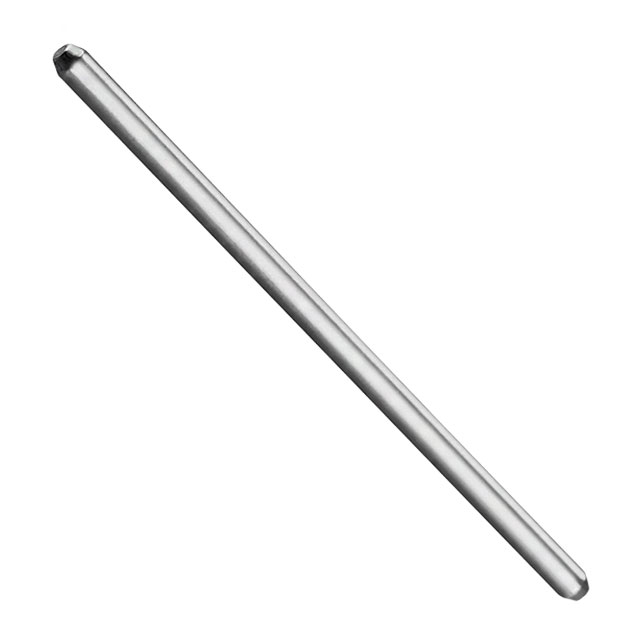

S07-46

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S07-46 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	S07-46
Manufacturer	Harwin
Description	BRIDGE PIN 0.7MM X 23MM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	2500 pcs
~~In Stock~~ 672430 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.087	$0.08	$0.068	$0.06	$0.055
	$0.049	$0.047	$0.038	$0.035

Product parameter
Data sheet

Product parameter

Part Number	S07-46	Manufacturer	Harwin
Description	BRIDGE PIN 0.7MM X 23MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	672430 pcs	Data sheet	PCB Hardware Catalog S0(7,8)-46 Drawing Clip & Bar Conn System Brochure
Category	Connectors, Interconnects	Termination	Solder
Terminal Type	Single Post	Terminal Style	Smooth
Series	EZ-Board	Pin Size - Below Flange	0.028" (0.70mm)
Pin Size - Above Flange	0.028" (0.70mm)	Packaging	Bulk
Other Names	952-2671	Mounting Type	-
Mounting Hole Diameter	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Insulation	-	Manufacturer Standard Lead Time	7 Weeks
Length - Overall	0.906" (23.00mm)	Length - Below Flange	-
Length - Above Flange	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Color	-	Insulation	Non-Insulated
Flange Diameter	-	Detailed Description	Single Post Terminal Connector Tin 0.028" (0.70mm)
Contact Material	Phosphor Bronze	Contact Finish Thickness	-
Contact Finish	Tin	Board Thickness	-
