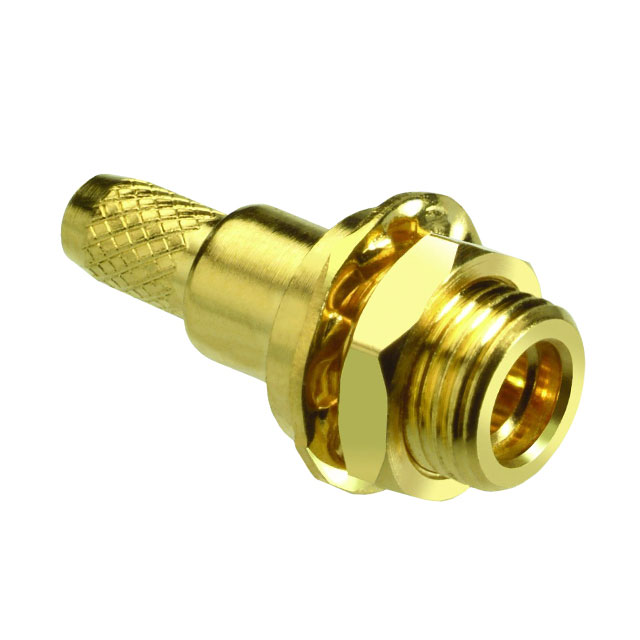

MMCX-5305
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MMCX-5305 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MMCX-5305 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MMCX-5305 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN MMCX JACK STR 50 OHM CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | MMCX-5305 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN MMCX JACK STR 50 OHM CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5371 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | 170V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.2dB | Ingress Protection | - |
| Includes | 5 pcs - 1 Connector, 1 Contact, 1 Nut, 1 Sleeve, 1 Washer | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 6GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | MMCX Connector Jack, Female Socket 50 Ohm Panel Mount Crimp |
| Contact Termination | Crimp | Connector Type | Jack, Female Socket |
| Connector Style | MMCX | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | RG-174, 188, 316 |
| Body Material | Brass | Body Finish | Gold |
