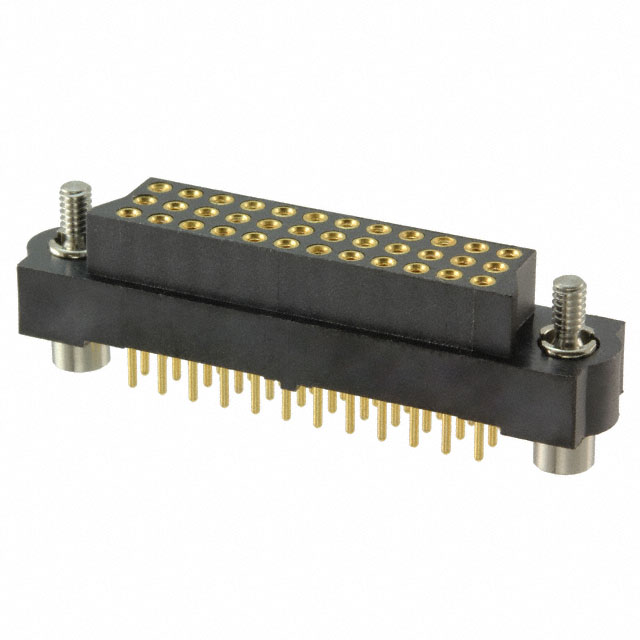

M83-LFT1F2N36-0000-000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M83-LFT1F2N36-0000-000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M83-LFT1F2N36-0000-000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M83-LFT1F2N36-0000-000 |
|---|---|
| Manufacturer | Harwin |
| Description | 3 ROW FEMALE VERT PC TAIL 36 W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $9.733 | $8.787 | $8.419 | $7.893 | ||
| 120 pcs | 270 pcs | 510 pcs | |||
| $7.629 | $7.209 | $6.998 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M83-LFT1F2N36-0000-000 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 3 ROW FEMALE VERT PC TAIL 36 W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4345 pcs | Data sheet | M80, M83 Series Spec SheetDatamate CatalogM83-LFT1F2Nxx-0000-000 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 120V |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Datamate J-Tek | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tray |
| Other Names | 952-2994 M83-LFT1F2N36-0000-000-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 36 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 10.65mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Insulation Height | 0.330" (8.38mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Jackscrews, Mating Flange, Mounting Flange |
| Fastening Type | Screw Lock | Detailed Description | 36 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Military |
