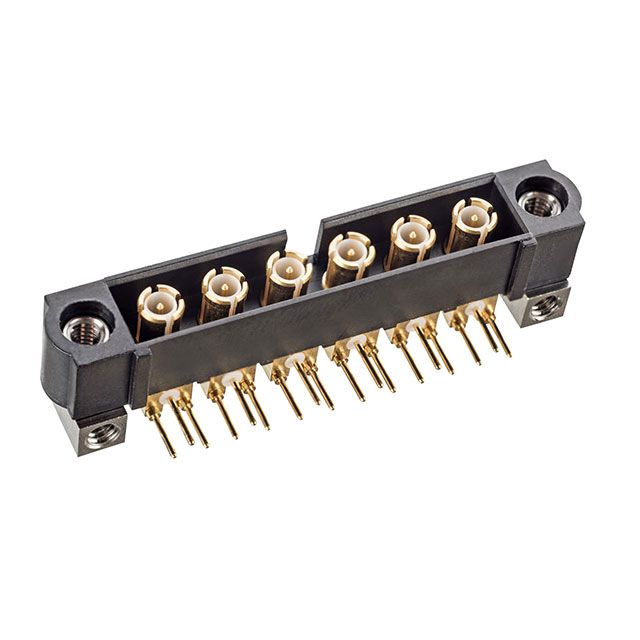

M80-MH313M5-06
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-MH313M5-06 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M80-MH313M5-06 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M80-MH313M5-06 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN HDR COAX 6GHZ 4MM R/A 6POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 14 pcs | 105 pcs | ||
|---|---|---|---|---|---|
| $23.053 | $21.695 | $18.577 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M80-MH313M5-06 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HDR COAX 6GHZ 4MM R/A 6POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1834 pcs | Data sheet | M80-MH313M5-xx DrawingM80, M83 Series Spec SheetDatamate Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Datamate Coax |
| Row Spacing - Mating | - | Pitch - Mating | 0.157" (4.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 952-3114 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 (Coax) | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Insulation Height | 0.220" (5.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Mating Flange, Mounting Flange |
| Fastening Type | Threaded | Detailed Description | Connector Header Through Hole, Right Angle 6 (Coax) position 0.157" (4.00mm) |
| Current Rating | - | Contact Type | Male Pin, Coaxial |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
