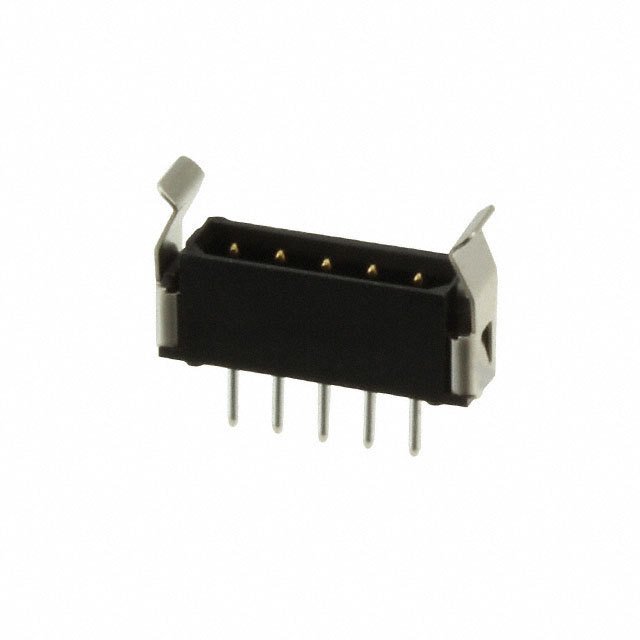

M80-8810542
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-8810542 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M80-8810542 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M80-8810542 |
|---|---|
| Manufacturer | Harwin |
| Description | 5 SIL MALE VERT CONN F/LATCH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 180 pcs | ||||
|---|---|---|---|---|---|
| $0.81 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | M80-8810542 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 5 SIL MALE VERT CONN F/LATCH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42143 pcs | Data sheet | M80-881 DrawingM80, M83 Series Spec Sheet |
| Category | Connectors, Interconnects | Voltage Rating | 800V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Datamate L-Tek |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 952-2975 M80-8810542-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 7.23mm, 10.2mm, 13.46mm | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Insulation Height | 0.219" (5.56mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Friction Lock |
| Detailed Description | Connector Header Through Hole 5 position 0.079" (2.00mm) | Current Rating | 2.2A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 118.1µin (3.00µm) |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
