M80-8681422
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-8681422 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M80-8681422 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M80-8681422 |
|---|---|
| Manufacturer | Harwin |

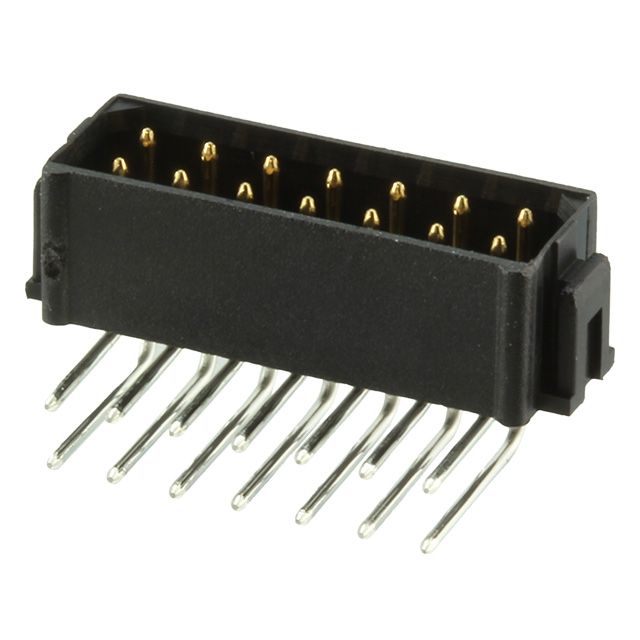

| Description | CONN HDR 2MM R/A DUAL 14POS |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 14 pcs | 112 pcs | 504 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $1.513 | $1.451 | $1.209 | $1.027 | $0.876 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | M80-8681422 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HDR 2MM R/A DUAL 14POS | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 43777 pcs | Data sheet | M80, M83 Series Spec SheetM80-868 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 120V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Datamate L-Tek |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 952-2952 B5743-214-M-L-0 M80-8681422-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.235" (5.97mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Strain Relief Clips |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 14 position 0.079" (2.00mm) |
| Current Rating | 2.2A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
