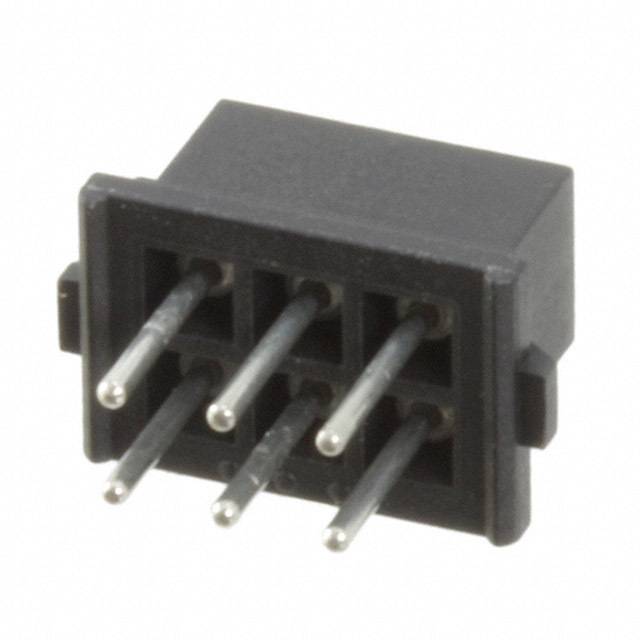

M80-8500642
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-8500642 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M80-8500642 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M80-8500642 |
|---|---|
| Manufacturer | Harwin |
| Description | DIL FEMALE VERT PC TAIL CONN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 26 pcs | 104 pcs | ||
|---|---|---|---|---|---|
| $1.143 | $1.006 | $0.914 | |||
| 520 pcs | 1014 pcs | 5018 pcs | |||
| $0.777 | $0.663 | $0.594 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M80-8500642 | Manufacturer | Harwin |
|---|---|---|---|
| Description | DIL FEMALE VERT PC TAIL CONN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59076 pcs | Data sheet | M80, M83 Series Spec SheetM80-850yyyy DrawingDatamate Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 800V |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Datamate L-Tek | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 952-2076 M808500642 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 7.23mm, 7.85mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 0.202" (5.14mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | 6 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | 157.5µin (4.00µm) |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Military |
