| Part Number | M80-8271642 |
|---|---|
| Manufacturer | Harwin |

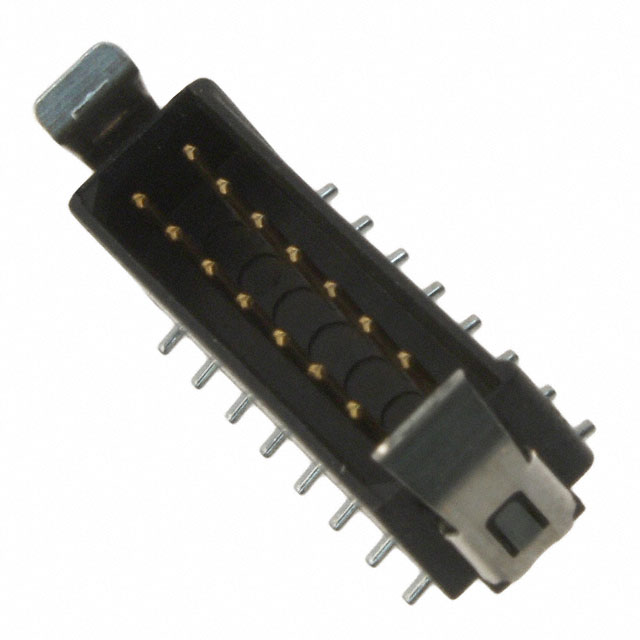

| Description | CONN HDR 2MM SMT W/LATCH 16POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | M80-8271642 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HDR 2MM SMT W/LATCH 16POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5764 pcs | Data sheet | M80, M83 Series Spec SheetM80-827 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 800V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Datamate L-Tek |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 952-1177-5 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 7.85mm, 8.45mm, 10.5mm, 14.25mm | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled | Insulation Height | 0.205" (5.20mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Friction Lock |
| Detailed Description | Connector Header Surface Mount 16 position 0.079" (2.00mm) | Current Rating | 2.2A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 118.1µin (3.00µm) |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
