Home > Products > Connectors, Interconnects > Rectangular Connectors - Free Hanging, Panel Mount > M80-8160805

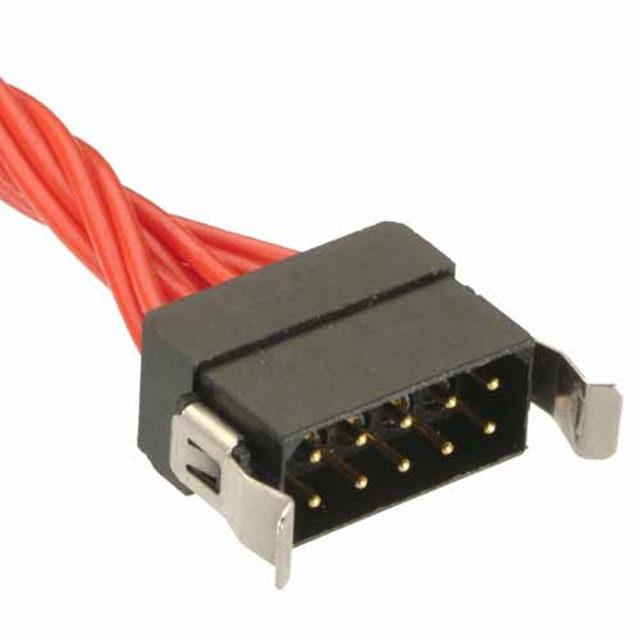

M80-8160805

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-8160805 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M80-8160805
Manufacturer	Harwin
Description	08 WAY M/CRIMP S/BORE F/LATCH
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4115 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	M80-8160805	Manufacturer	Harwin
Description	08 WAY M/CRIMP S/BORE F/LATCH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4115 pcs	Data sheet	M80, M83 Series Spec Sheet M80-816xx05 Drawing
Category	Connectors, Interconnects	Wire Type	Discrete
Wire Gauge	24-28 AWG	Series	Datamate L-Tek
Row Spacing	0.079" (2.00mm)	Pitch	0.079" (2.00mm)
Packaging	Bulk	Other Names	952-3437 M80-8160805-ND
Number of Rows	2	Number of Positions	8
Mounting Type	Free Hanging (In-Line)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Fastening Type	Friction Lock	Detailed Description	8 Position Rectangular Plug Connector Crimp Gold 24-28 AWG
Contact Type	Male Pin	Contact Finish Thickness	10.0µin (0.25µm)
Contact Finish	Gold	Connector Type	Plug
Color	Black	Cable Termination	Crimp
