M80-7056305

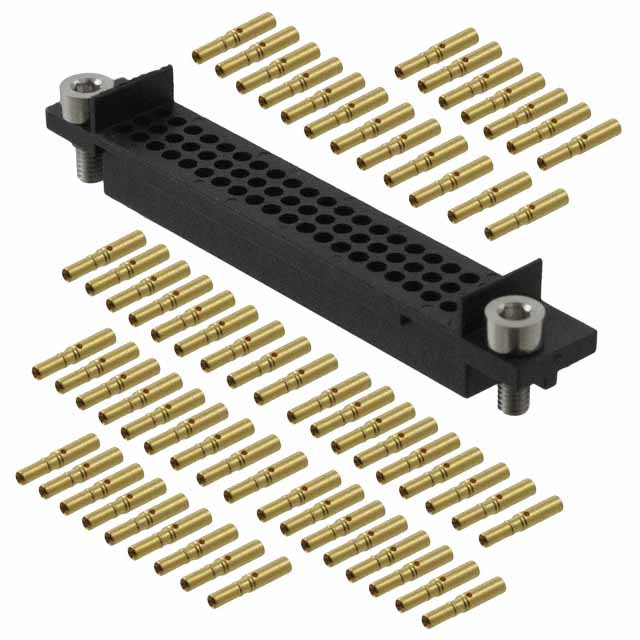

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-7056305 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M80-7056305 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M80-7056305 |
|---|---|
| Manufacturer | Harwin |
| Description | 3-ROW FEMALE SMALL BORE CONN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 12 pcs | 108 pcs | 504 pcs | |
|---|---|---|---|---|---|
| $9.566 | $8.634 | $7.497 | $6.876 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | M80-7056305 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 3-ROW FEMALE SMALL BORE CONN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5202 pcs | Data sheet | M80-705 DrawingM80-7xx Datamate Connectors |
| Category | Connectors, Interconnects | Wire Type | Discrete |
| Wire Gauge | 24-28 AWG | Series | Datamate J-Tek |
| Row Spacing | 0.079" (2.00mm) | Pitch | 0.079" (2.00mm) |
| Packaging | Tray | Other Names | 952-1953 M807056305 |
| Number of Rows | 3 | Number of Positions | 63 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Jackscrews | Fastening Type | - |
| Detailed Description | 63 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG | Contact Type | Female Socket |
| Contact Finish Thickness | 11.8µin (0.30µm) | Contact Finish | Gold |
| Connector Type | Receptacle | Color | - |
| Cable Termination | Crimp |
