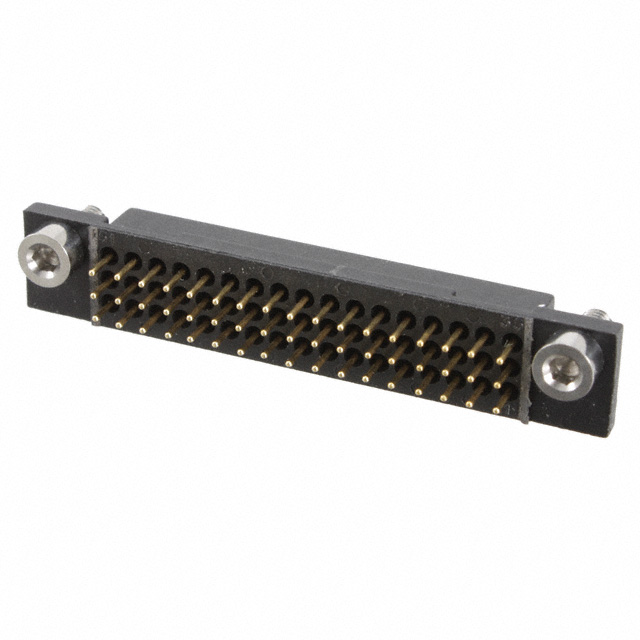

M80-7045105
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-7045105 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M80-7045105 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M80-7045105 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN 51 POS F 2MM SOLDER ST TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $10.922 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | M80-7045105 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN 51 POS F 2MM SOLDER ST TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3513 pcs | Data sheet | M80-7xx Datamate ConnectorsM80-704yyyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Datamate J-Tek | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tray |
| Other Names | 952-2387 M80-7045105-ND M807045105 Q5943209 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 51 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 0.247" (6.28mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Jackscrews, Mating Flange, Mounting Flange |
| Fastening Type | Screw Lock | Detailed Description | 51 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | 12.0µin (0.30µm) |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
