| Part Number | M80-7002742 |
|---|---|
| Manufacturer | Harwin |

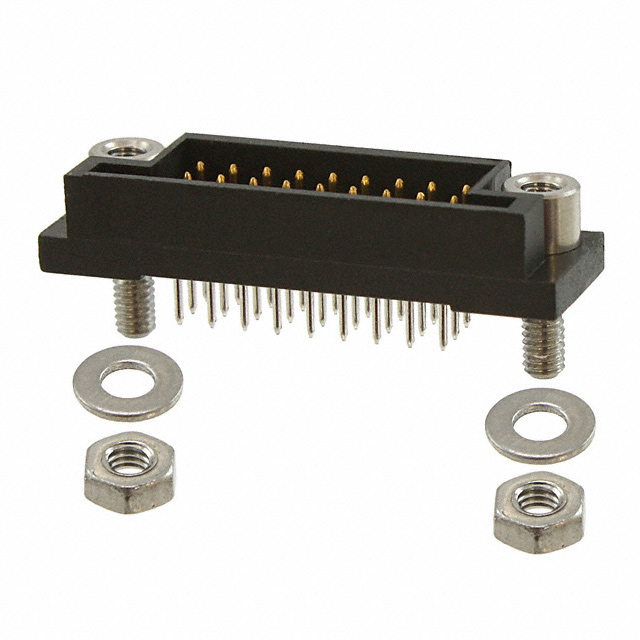

| Description | 27 WAY VERT MALE CONN T J/S |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 30 pcs | 120 pcs | 510 pcs | 1020 pcs |
|---|---|---|---|---|---|
| $5.111 | $4.529 | $3.948 | $3.368 | $3.089 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | M80-7002742 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 27 WAY VERT MALE CONN T J/S | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9739 pcs | Data sheet | M80-700yyyy DrawingM80-7xx Datamate Connectors |
| Category | Connectors, Interconnects | Voltage Rating | 120V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Datamate J-Tek |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 952-1909 M807002742 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 27 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Insulation Height | 0.244" (6.20mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Mating Flange, Mounting Flange, Mounting Hardware |
| Fastening Type | Threaded | Detailed Description | Connector Header Through Hole 27 position 0.079" (2.00mm) |
| Current Rating | 2.2A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
