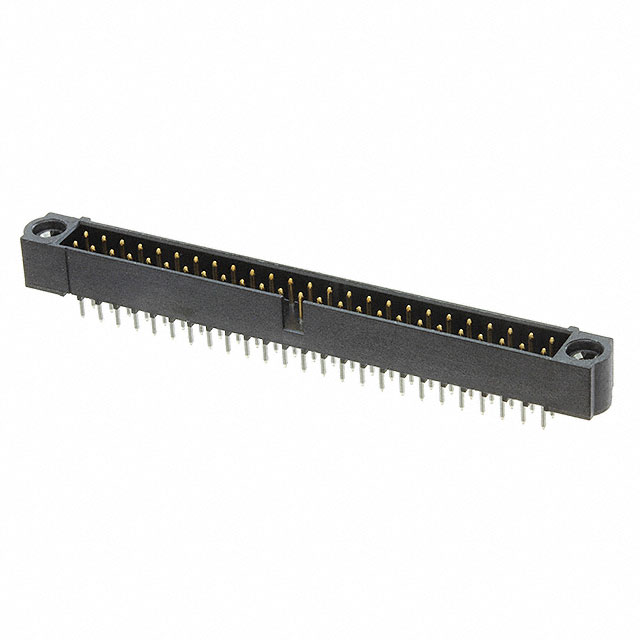

M80-5T15042MC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-5T15042MC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M80-5T15042MC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M80-5T15042MC |
|---|---|
| Manufacturer | Harwin |
| Description | 101-LOK TRIO TEK MALE VERTICAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 12 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $3.208 | $3.067 | $2.579 | $2.161 | $1.91 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | M80-5T15042MC | Manufacturer | Harwin |
|---|---|---|---|
| Description | 101-LOK TRIO TEK MALE VERTICAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17575 pcs | Data sheet | M80-5T1zzzzMC DrawingDatamate Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 120V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Datamate J-Tek |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 952-3834 M80-5T15042MC-ND |
Operating Temperature | -55°C ~ 121°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 50 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 7.3mm, 7.7mm, 9.75mm, 10.75mm, 13.35mm, 14.75mm | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Insulation Height | 0.220" (5.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Mating Flange |
| Fastening Type | Push-Turn Lock | Detailed Description | Connector Header Through Hole 50 position 0.079" (2.00mm) |
| Current Rating | 2.2A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
