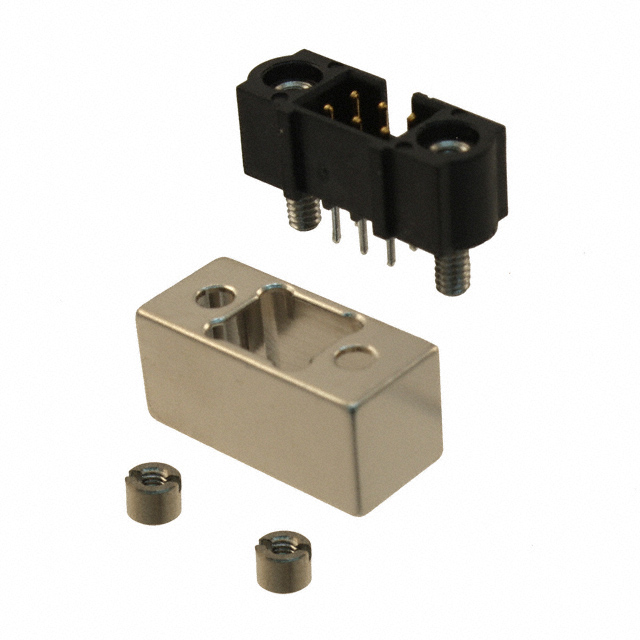

M80-5T10605B1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-5T10605B1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M80-5T10605B1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M80-5T10605B1 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN HDR 2MM VERT SHLD 6POS AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | M80-5T10605B1 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HDR 2MM VERT SHLD 6POS AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4954 pcs | Data sheet | M80-5T1yyyyB1 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 120V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Datamate S-Tek |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 952-1582 | Operating Temperature | -55°C ~ 121°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 33.55mm | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled | Insulation Height | 0.319" (8.10mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Backshell, Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware, Shielded | Fastening Type | Threaded |
| Detailed Description | Connector Header Through Hole 6 position 0.079" (2.00mm) | Current Rating | 2.2A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.106" (2.69mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 29.5µin (0.75µm) |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
